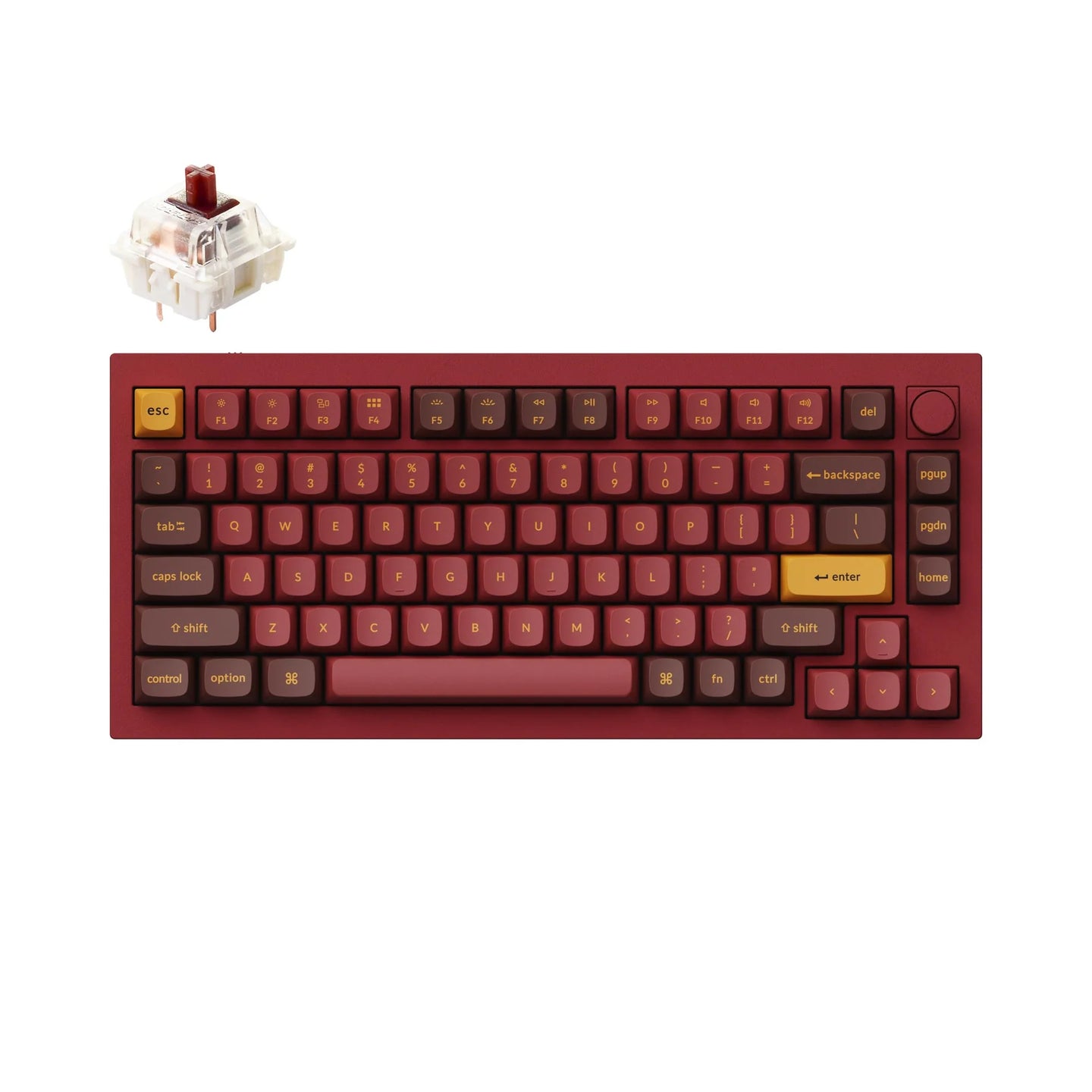

Keychron Q1V2 (Q1 Version 2)

Fully Assembled

Colour: Red

Switches: Gateron Brown

SKU: Q1-T3


A fully customizable 75% layout mechanical keyboard featured QMK / VIA support; designed with all the premium features with unlimited possibilities.

The Q1 is a revolutionary all-metal keyboard with customizable capabilities for every switch, keycap, stabilizer, knob, and even the plate. It’s designed for a personalized experience and premium typing comfort.

The sculpting of a piece of art.

This keyboard is not just a tool, but a piece of art on your desk. The Q1 is created with a 6063 aluminum CNC machined body, polished, anodized and sandblasted finish, and twenty-four manufacturing processes.

Double-Gasket Design

Double Gasket Design is an industry innovative structure. In addition to the gaskets on the plates, we added silicone pads between the top and bottom cases. It significantly reduces the resonance between the metals, which in return, reduces the noise of the impacted metals. This Double-Gasket Structure allows the keyboard to maintain the flexibility of the gasket structure and make the overall typing sound better.


Programmable Knob

Designed to enhance your creative workflow, the premium rotary encoder allows you to customize your favorite keys and macros through the innovative VIA software with ease.

Switch layouts between
macOS & Windows.

Built with the Mac users’ experience in mind while still retaining the compatibility for Windows devices, the Q1 is one of the only few in the market that comes with a Mac multimedia key layout for Mac enthusiasts. With VIA, you can configure your keymap for both Mac and Windows devices.

OSA Profile Double-shot PBT Keycaps

For the new double-shot PBT keycaps, we built a new profile. It has a similar height to that of the OEM profile and has an SA-like shape. We named it the OSA (OEM spherical angled) keycap. The PBT keycaps will provide excellent oil resistance, enhance the type feel, and prevent the legends from fading out.

Program The Q1 with
QMK & VIA.

With the Q1 ‘s open-source QMK/VIA, you can intuitively remap your favorite keys and create macros with any key (including the knob) on any operating system (macOS, Windows, or Linux) for a fluid workflow.

Hot-swappable

The hot-swappable sockets are mounted on the PCB, so you can install or change the switches without soldering. The PCB supports both 3 pin and 5 pin MX mechanical switches.

South-facing RGB LED Lights

The south-facing RGB is designed to better illuminate the keyboard backlight from the typist’s angle with the premium non-shine-through PBT keycaps installed. The south-facing RGB is also free from interference when the user installs Cherry-profile alternative keycaps on their keyboard.

Pre-lubed Gateron G Pro Switch

Every detail counts when it comes to a premium typing experience. An optimized mold with more precise positioning and less wobbliness will certainly improve your fingertip feel. Pair that together with our revamped stabilizers and factory pre-lubed Gateron G Pro switches, a smooth travel experience is guaranteed.

All New Screw-In PCB Stabilizers

The screw-in design increases stability and makes it easier for changes and upgrades. Precise craftsmanship makes the stabilizers more stable and less wobbly. The big keys’ (space bar, shift, enter, delete) typing experience is now more stable and smooth. The Keychron Q1 V2 also supports third-party stabilizers including Cherry or Durock.



Specs

Width 145 mm
Length 327.5 mm
Front Height 22.6 mm  (without keycaps)
Back Height 35.8 mm (without keycaps)
Feet Height 2.4 mm
Angle 5.2°
Weight 1825 g ± 10 g (Fully Assembled version)
Body Material Full CNC machined aluminum
Plate Material Steel
Polling Rate 1000 Hz
Keycap Double-shot keycaps, not shine-through (Fully Assembled version)
MCU Ultra-low-power Arm Cortex-M4 32-bit STM32L432 (128KB Flash)

*The special edition (Orange Yellow, Champagne Gold, Red, Retro, Green, and Purple version) is equipped with MCU ATMEGA32U4.
Backlight South-facing RGB LED
Switch Gateron G Pro / Gateron Phantom / Keychron K Pro (Fully Assembled version)
Hot-swappable Support Compatible with most of the 3 pin & 5 pin MX style mechanical switches such as Gateron, Cherry MX and Kailh, etc.
Stabilizer Screw-in PCB stabilizer
Connectivity Type-C
Cable Type-C cable + Type-A to Type-C adapter
