Keychron Q1 Pro QMK 75% Wireless Hot-Swap Knob Version - Silver Grey - Red Switch
- Regular price
- $319.00
-
Estimated Arrival Date:
- TBA
Shipping is calculated in checkout
![](http://ausmodshop.com/cdn/shop/files/Keychron-Q1-Pro-QMK-VIA-wireless-custom-mechanical-keyboard-knob-75-percent-layout-full-aluminum-grey-frame-for-Mac-Windows-Linux-with-RGB-backlight-hot-swappable-K-Pro-switch-red_180.webp?v=1692257713&width=1440)
![](http://ausmodshop.com/cdn/shop/files/keychronq1pro1-1673855423513.webp?v=1692257713&width=1440)
![](http://ausmodshop.com/cdn/shop/files/packagelistofthekeychronq1profullyassembledknobversion-1679476094195_700df9b9-b710-4738-b693-d71caa93e2a6.webp?v=1692257713&width=1440)
![](http://ausmodshop.com/cdn/shop/files/featuersofkeychronq1pro--edited-1673667510751_c2ef3c73-cb04-42e0-bab4-f60aa71c844d.webp?v=1692257713&width=1440)

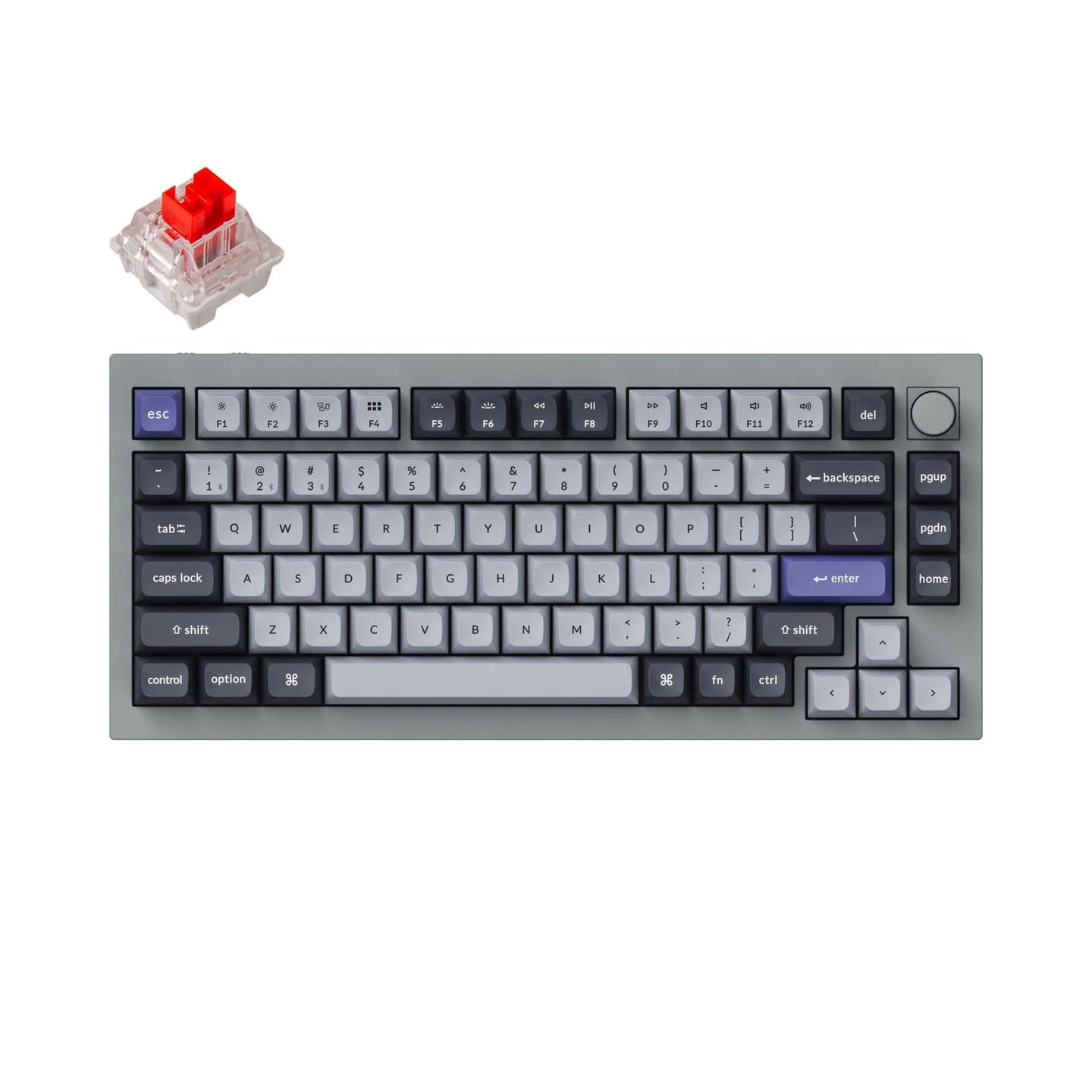

Keychron Q1 Pro
Fully Assembled
Colour: Silver Grey
Switches: Keychron K Pro Red
SKU: Q1P-N1
Meet the Keychron Q1 Pro, a groundbreaking full metal QMK/VIA wireless custom mechanical keyboard. Along with our many premium designs, including double-gasket design, PBT keycaps, screw-in stabs, etc., it will deliver you an unprecedented typing experience!
Wireless and Wired
An excellent solution for multitasking. You can connect the Q1 Pro with up to 3 devices wirelessly via its stable Broadcom Bluetooth 5.1 for seamless multitasking across your laptop, phone, and tablet. Switch among them swiftly, and it’s fully compatible with both Mac and Windows. A reliable USB Type-C wired connection is also available when you need it.
A Refined Piece Of Metal Art
The entire metal body is crafted with 6063 aluminum that is processed through CNC machined, polished, anodized, sandblasted, and undergoes 24 more manufacturing stages to make this solid metal piece of art that is the Q1 Pro
Easy Assemble
We designed every component to be able to assemble easily so you can customize and adjust each component with ease to create your ultimate typing experience.
Double-Gasket Design
The Double Gasket Design is a new innovative structure in the industry. In addition to the gaskets on the plates, we added silicone pads between the top and bottom cases to significantly reduce the sound resonance between the metals and reduce the noise of the impacted metals.
Experience the next level of key sounds and comfort with our gasket mount design together with a flexible PC (Polycarbonate) plate. This design combination allows the keyboard to maintain the flexibility of the gasket structure and improves the overall typing sound.
An Epic Core Inside The Keyboard
A powerful ultra-low-power ARM Cortex-M4 32-bit STM32L432 chip (MCU) equipped with 128K Flash will provide more flexibility for developers. The polling rate is 1000 Hz right out of the box on type-c wired mode (90 Hz on wireless mode), which makes the latency hardly noticeable even in competitive games.
SA Double-Shot PBT Keycaps
To further fine-tune your typing experience, we designed our unique Keychron spherical-angle (KSA profile) double-shot keycap set with premium non-backlight shine through PBT material, that is oil-resistant and durable for long-term use
Programmable Knob
Designed to enhance your creative workflow, the aluminum rotary encoder allows you easily customize the knob to your desired key or macro commands like zooming in/out, adjusting screen brightness, brush size, volume, selecting video clips or photos, or backlight hue.
Program The Q1 Pro with QMK & VIA.
Endless possibilities for a fluid workflow thanks to its ability to remap any key, and create macro commands, shortcuts, or key combinations through the QMK/VIA.
South-Facing RGB
Comes with 22 types of RGB backlight settings. You can further fine-tune the RGB hue, saturation, brightness, effect speed, and different modes, or even remap these keys with QMK/VIA.
PCB Stabilizers
No detail is too insignificant when it comes to your fingertip feel. We’ve integrated the PCB-mounted screw-in stabilizers for a smoother typing experience with less wobbliness on the big keys such as the space bar, shift, enter, and delete keys. You can even customize your favorite stabilizers on your own.
Specs
Width | 145 mm |
---|---|
Length | 327.5 mm |
Front Height | 22.6 mm (without keycaps) |
Back Height | 35.8 mm (without keycaps) |
Feet Height | 2.4 mm |
Angle | 5.2° |
Weight | 1736 g ± 10 g (Fully Assembled version) |
Body Material | Full CNC machined aluminum |
Plate Material | PC |
Keycap | KSA double-shot PBT keycaps, not shine-through (Fully Assembled version) |
Switch | Keychron K Pro (Fully Assembled version) |
---|---|
Stabilizer | Screw-in PCB stabilizer |
Backlight | South-facing RGB LED |
Hot-swappable | Yes. Compatible with most of the 3 pin & 5 pin MX mechanical switches such as Gateron, Cherry MX and Kailh, etc. |
MCU | Ultra-low-power ARM Cortex-M4 32-bit STM32L432 (128KB Flash) |
Polling Rate | 1000 Hz (wired) / 90 Hz (wireless) |
N-Key Rollover (NKRO) | Yes for both wireless and wired modes |
Operating Environment | -10 to 50℃ |
