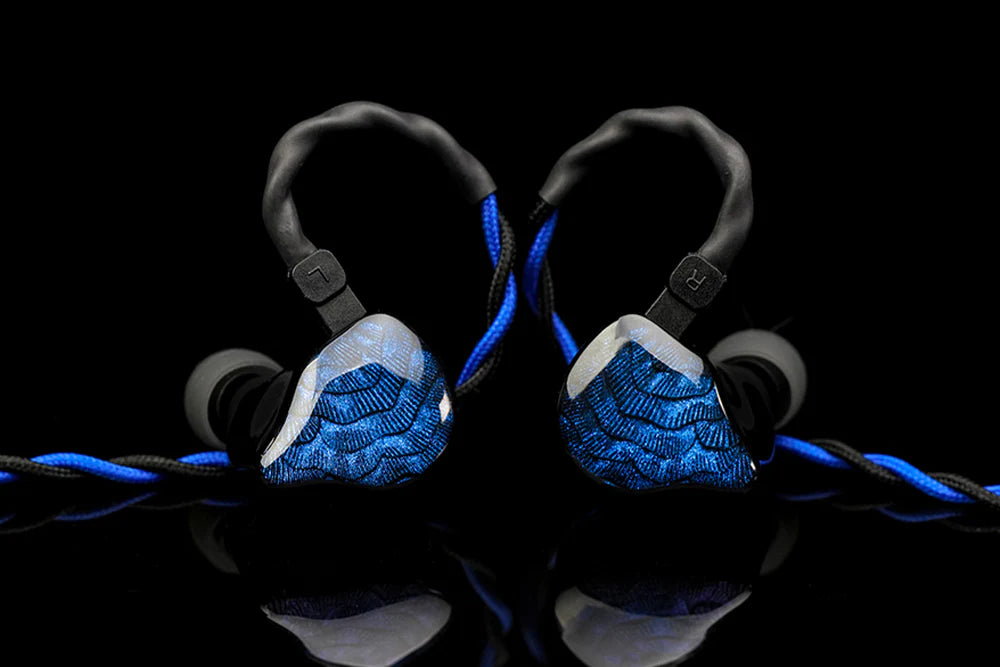

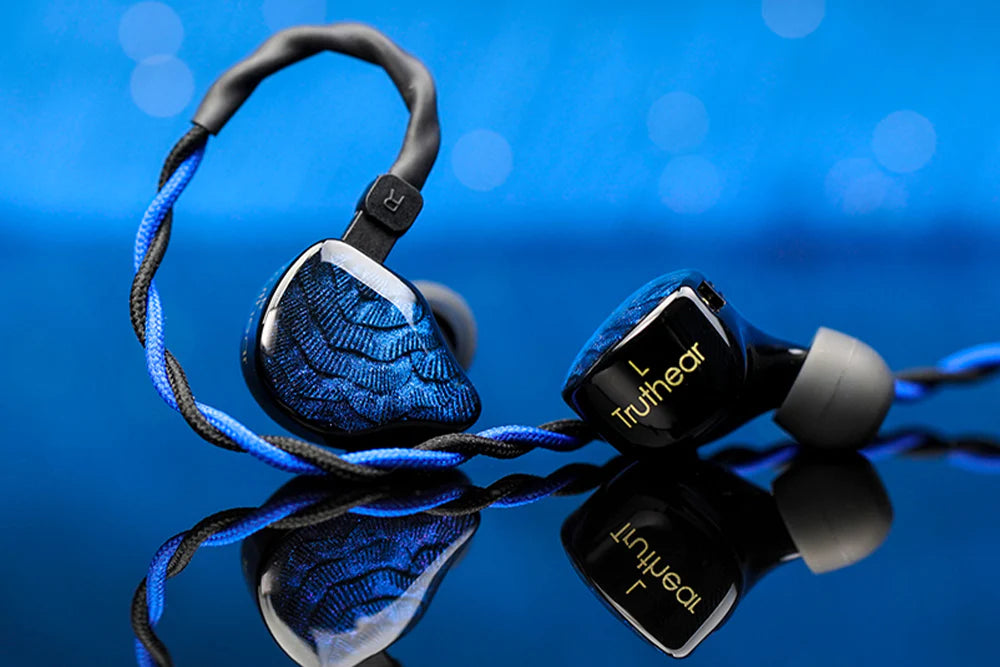

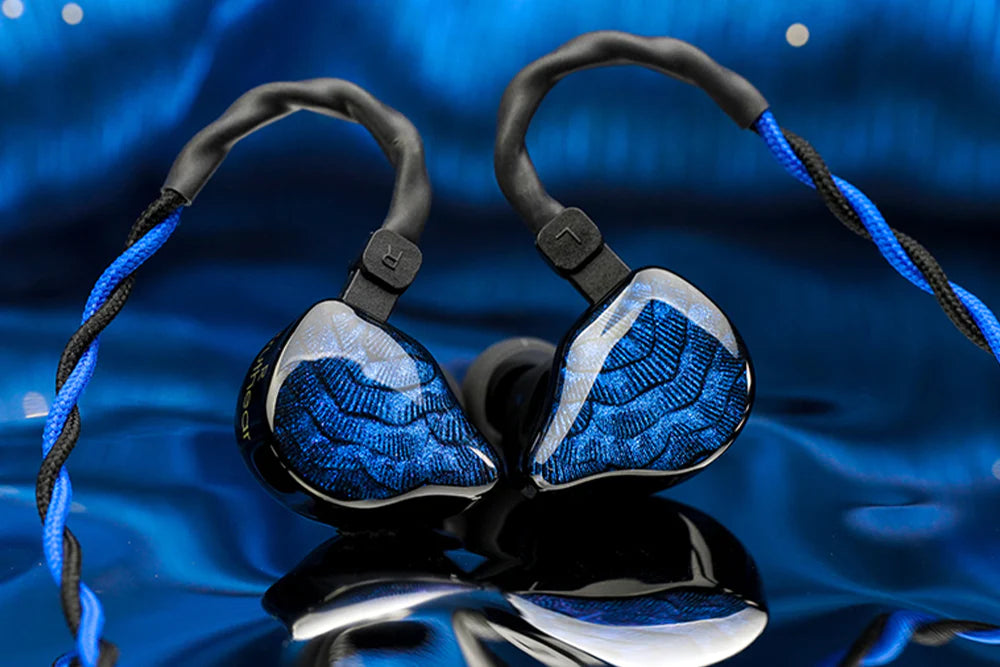

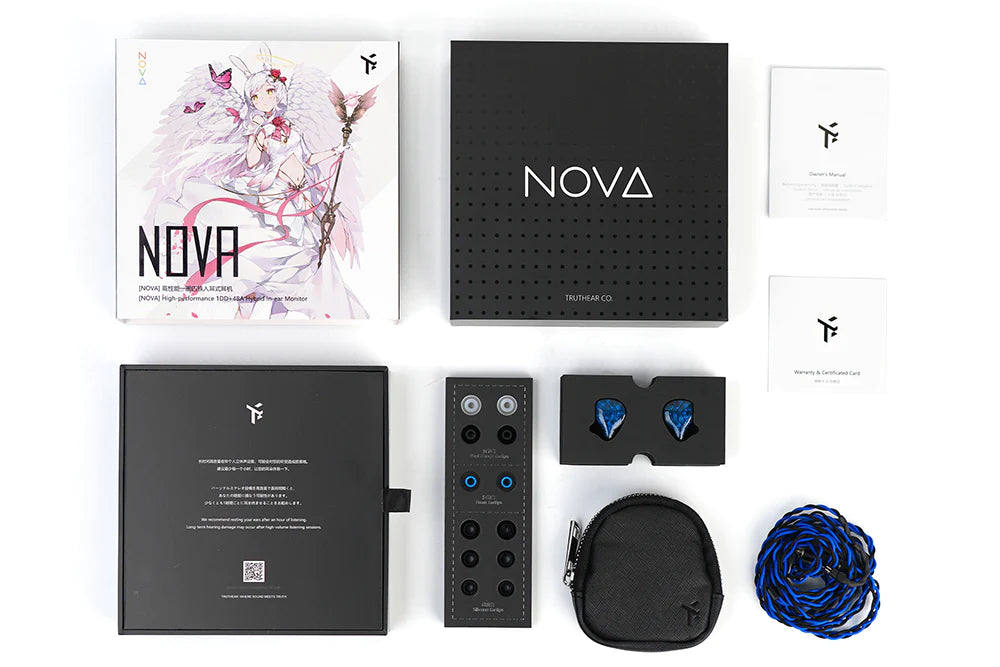

TRUTHEAR NOVA - 1DD+4BA In-Ear Headphone IEM

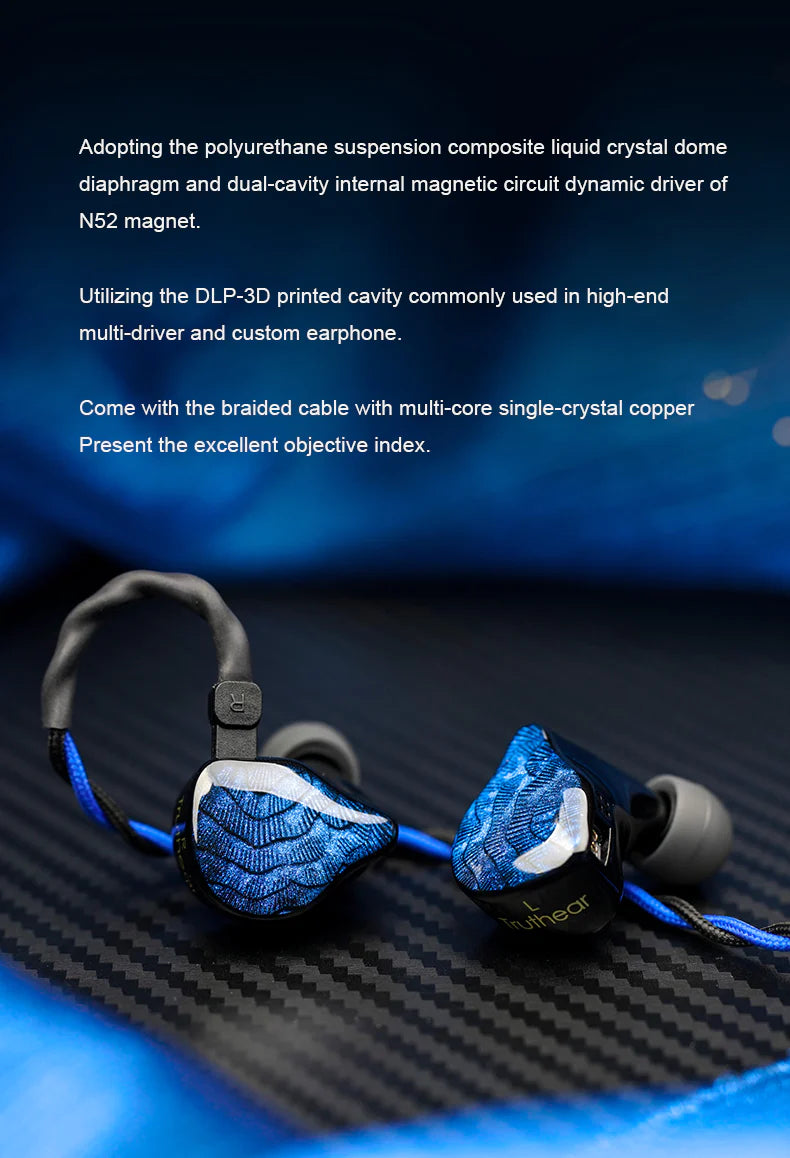

  • Adopting the polyurethane suspension composite liquid crystal dome diaphragm and dual-cavity internal magnetic circuit dynamic driver of N52 magnet. Utilizing the DLP-3D printed cavity commonly used in high-end multi-driver and custom earphone. Come with the braided cable with multi-core single-crystal copper. Present the excellent objective index.

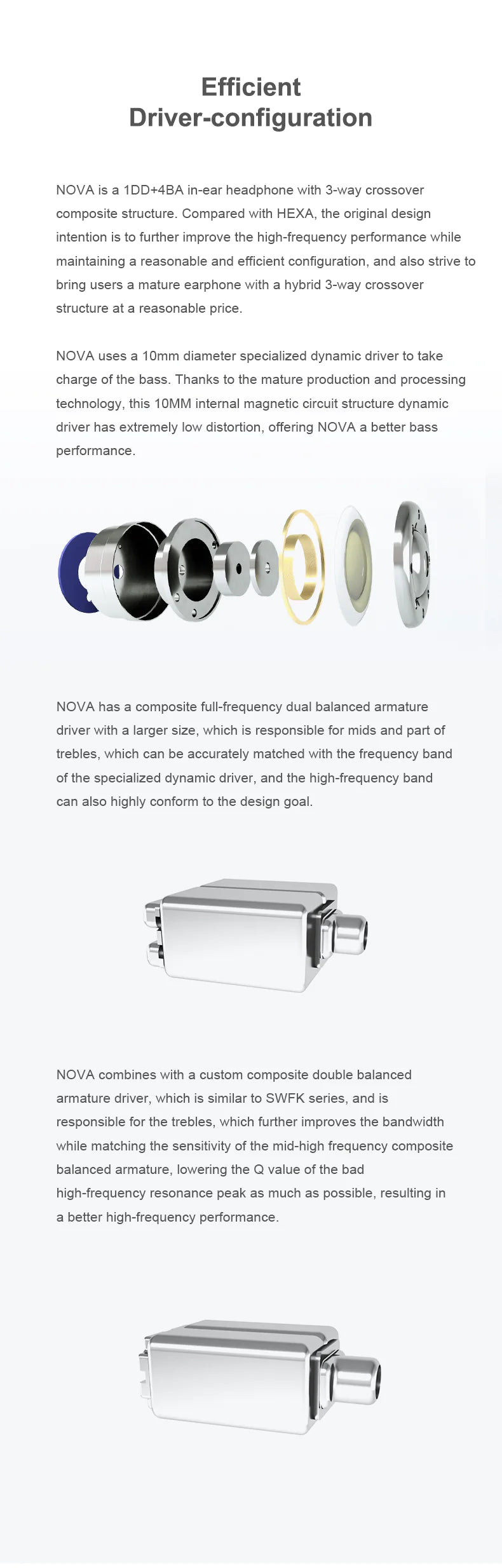

  • Efficient Driver-configuration. NOVA is a 1DD+4BA in-ear headphone with 3-way crossover composite structure. Compared with HEXA, the original design intention is to further improve the high-frequency performance while maintaining a reasonable and efficient configuration, and also strive to bring users a mature earphone with a hybrid 3-way crossover structure at a reasonable price. NOVA uses a 10mm diameter specialized dynamic driver to take charge of the bass. Thanks to the mature production and processing technology, this 10MM internal magnetic circuit structure dynamic driver has extremely low distortion, offering NOVA a better bass performance.

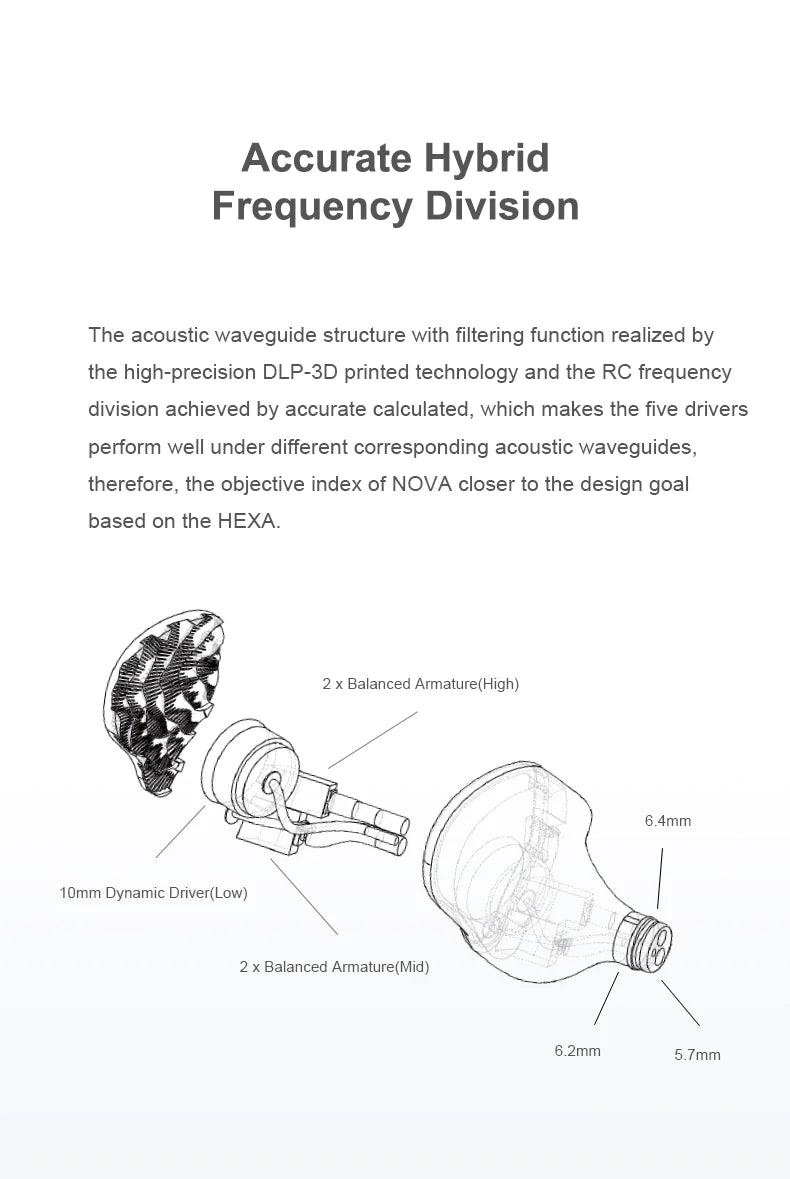

  • Accurate Hybrid Frequency Division. The acoustic waveguide structure with filtering function realized by the high-precision DLP-3D printed technology and the RC frequency division achieved by accurate calculated, which makes the five drivers perform well under different corresponding acoustic wave guides, therefore, the objective index of NOVA closer to the design goalbased on the HEXA.

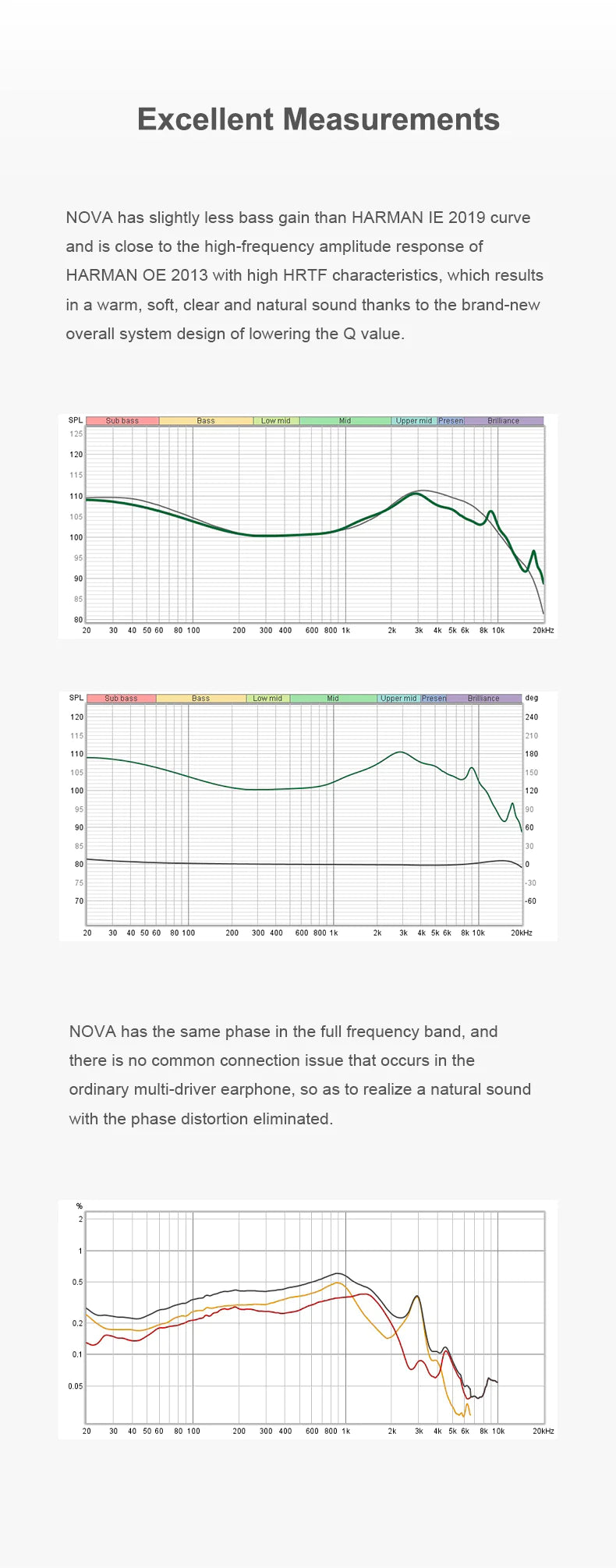

  • Excellent Measurements. NOVA has slightly less bass gain than HARMAN IE 2019 curve and is close to the high-frequency amplitude response of HARMAN OE 2013 with high HRTF characteristics, which resultsin a warm, soft, clear and natural sound thanks to the brand-newoverall system design of lowering the Q value.

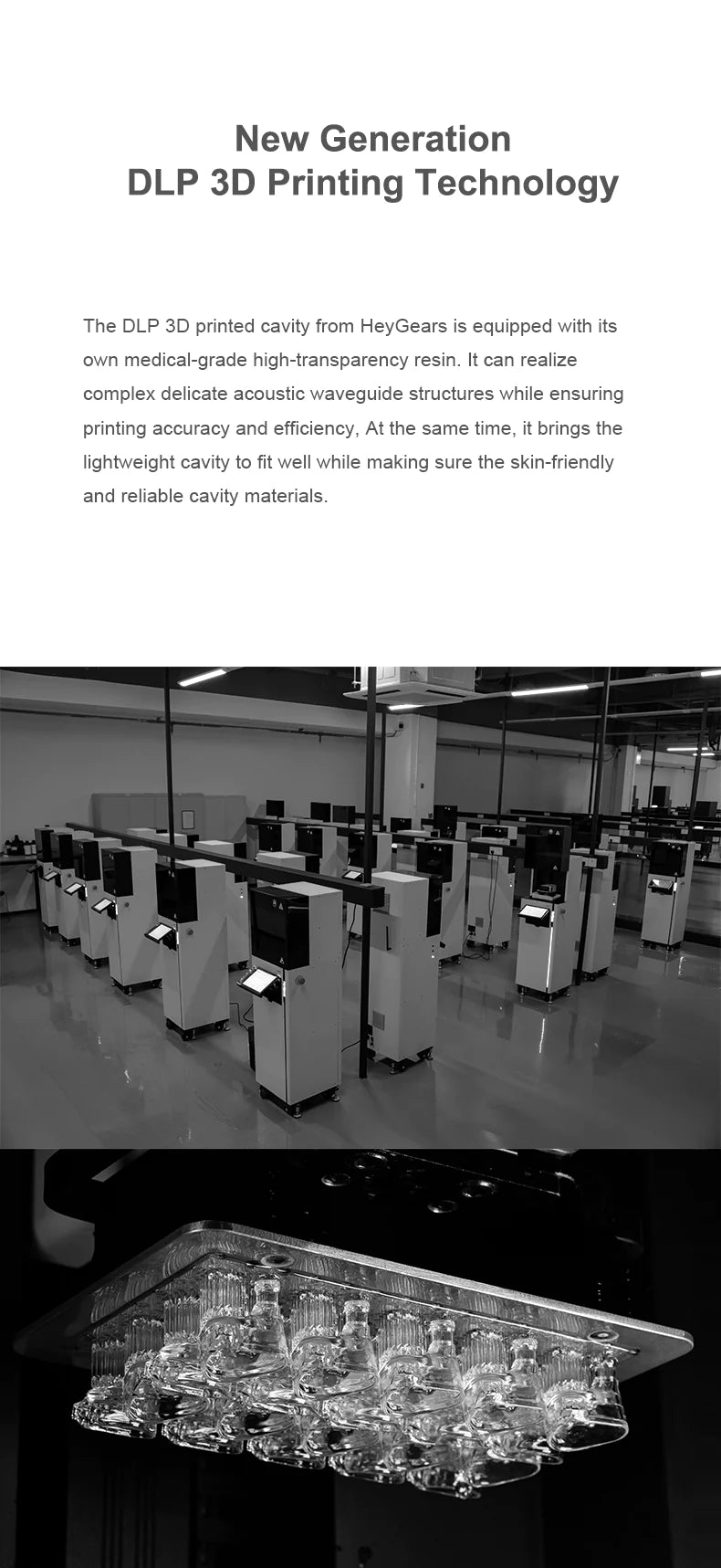

  • New GenerationDLP 3D Printing Technology. The DLP 3D printed cavity from HeyGears is equipped with its own medical-grade high-transparency resin. It can realize complex delicate acoustic waveguide structures while ensuring printing accuracy and efficiency, At the same time, it brings the lightweight cavity to fit well while making sure the skin-friendly and reliable cavity materials.

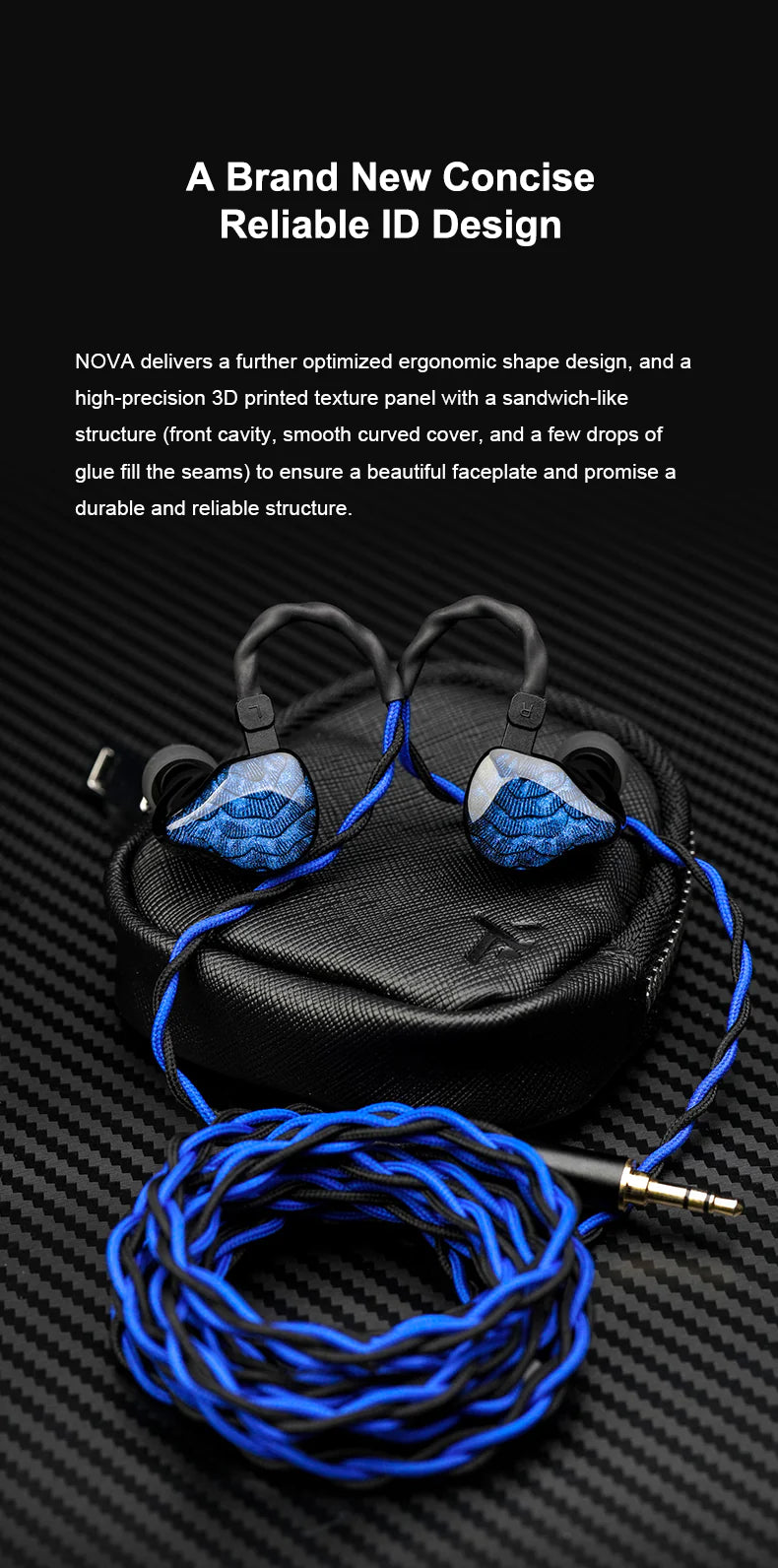

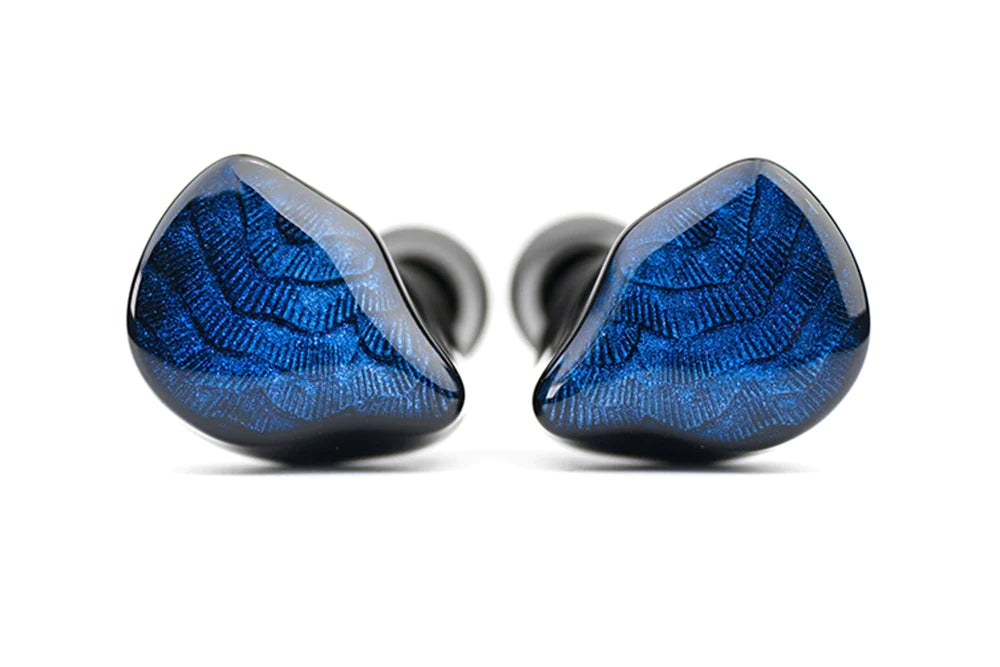

  • A Brand New ConciseReliable ID Design. NOVA delivers a further optimized ergonomic shape design, and a high-precision 3D printed texture panel with a sandwich-like structure (front cavity, smooth curved cover, and a few drops ofglue fill the seams) to ensure a beautiful faceplate and promise a durable and reliable structure.

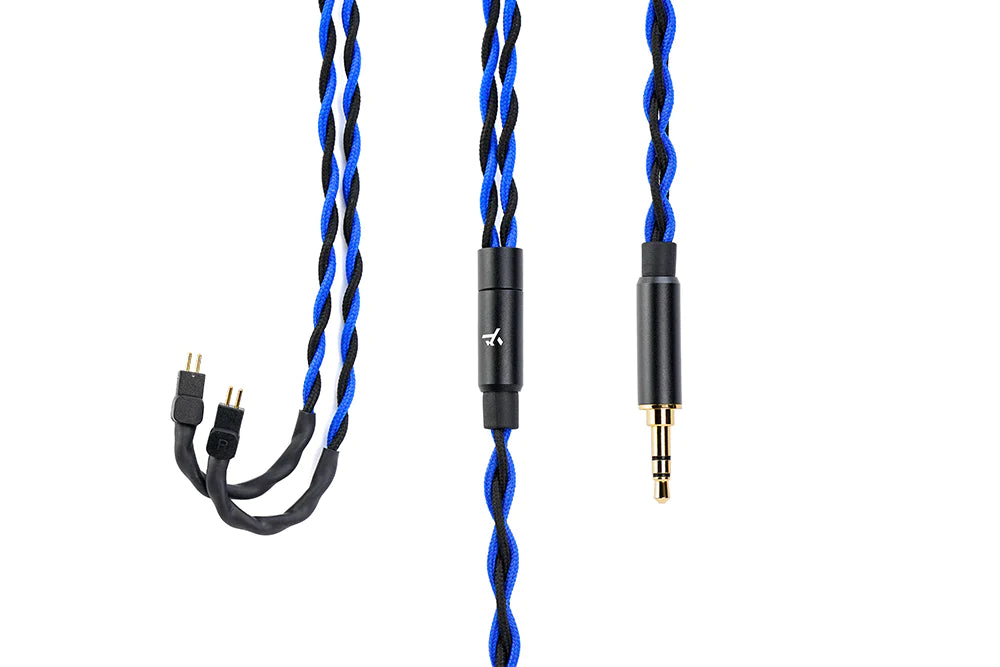

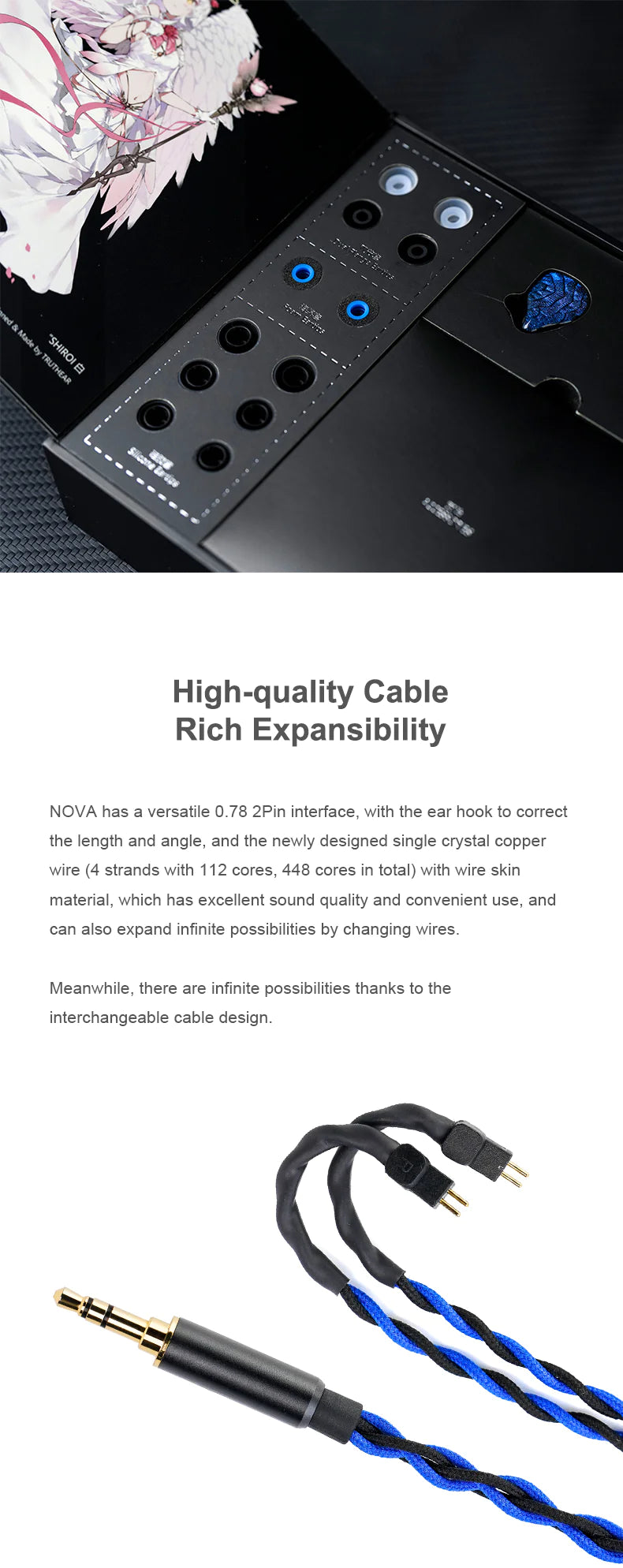

  • High-quality CableRich Expansibility. NOVA has a versatile 0.78 2Pin interface, with the ear hook to correct the length and angle, and the newly designed single crystal copperwire (4 strands with 112 cores, 448 cores in total) with wire skinmaterial, which has excellent sound quality and convenient use, and can also expand infinite possibilities by changing wires. Meanwhile, there are infinite possibilities thanks to the interchangeable cable design.

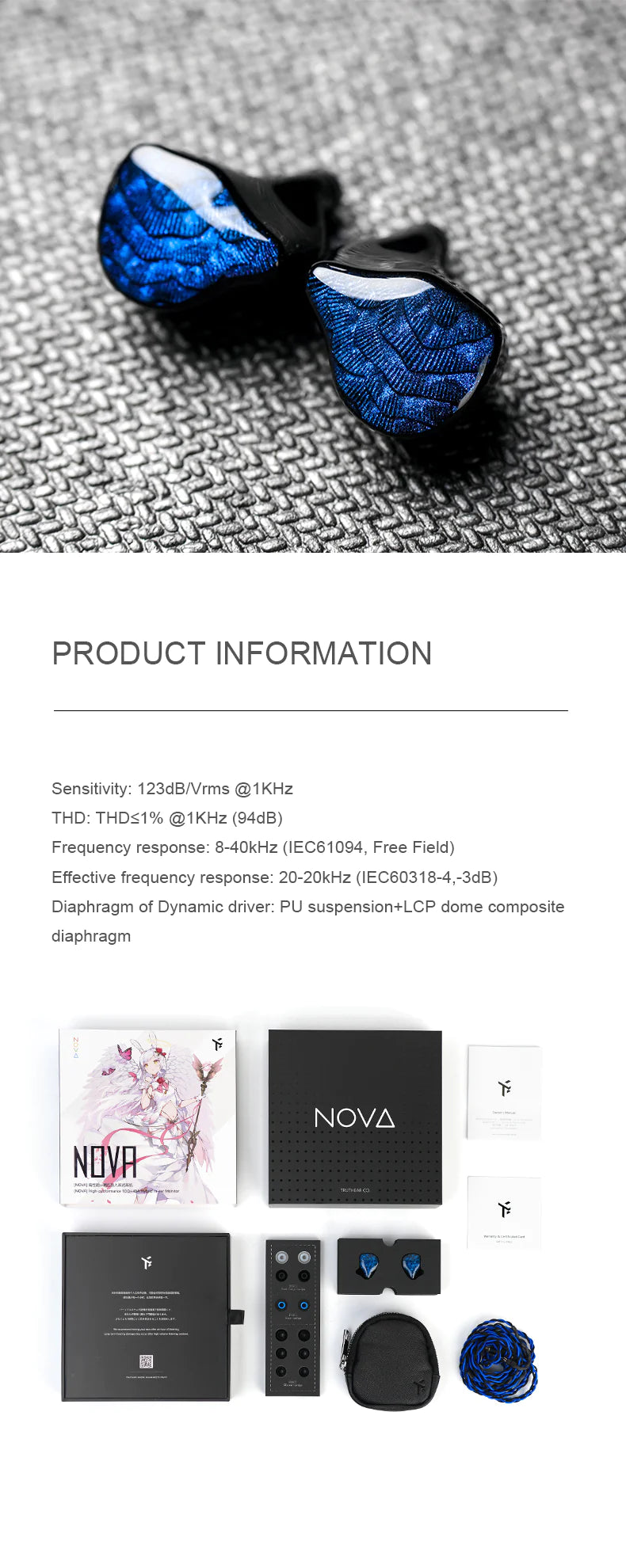

SPECIFICATIONS

NOVA Hybrid In-ear Monitor
Driver Configuration: 1DD + 4BA
Diaphragm Material: PU + LCP
THD: THD@1kHz<1% (94dB)
Sensitivity: 123dB/Vrms (@1kHz)
Impedance: 14.8Ω±15% (@1kHz)
FR Range: 8Hz-40kHz (IEC61094, Free Field)
Effective FR Range: 20Hz-20kHz (EC60318-4, -3dB)
Cable Material: 4-Strand (448-Core) OCC
