Gateron Magnetic Jade Ultra HE Magnetic Keyboard Switches

Brand: Gateron | Category: Keyboard Accessories
Size
$16.95
  • Stock Level:
  • 10 Pack: In stock
  • 70 Pack: In stock
  • 90 Pack: In stock

Click here to view shipping policy

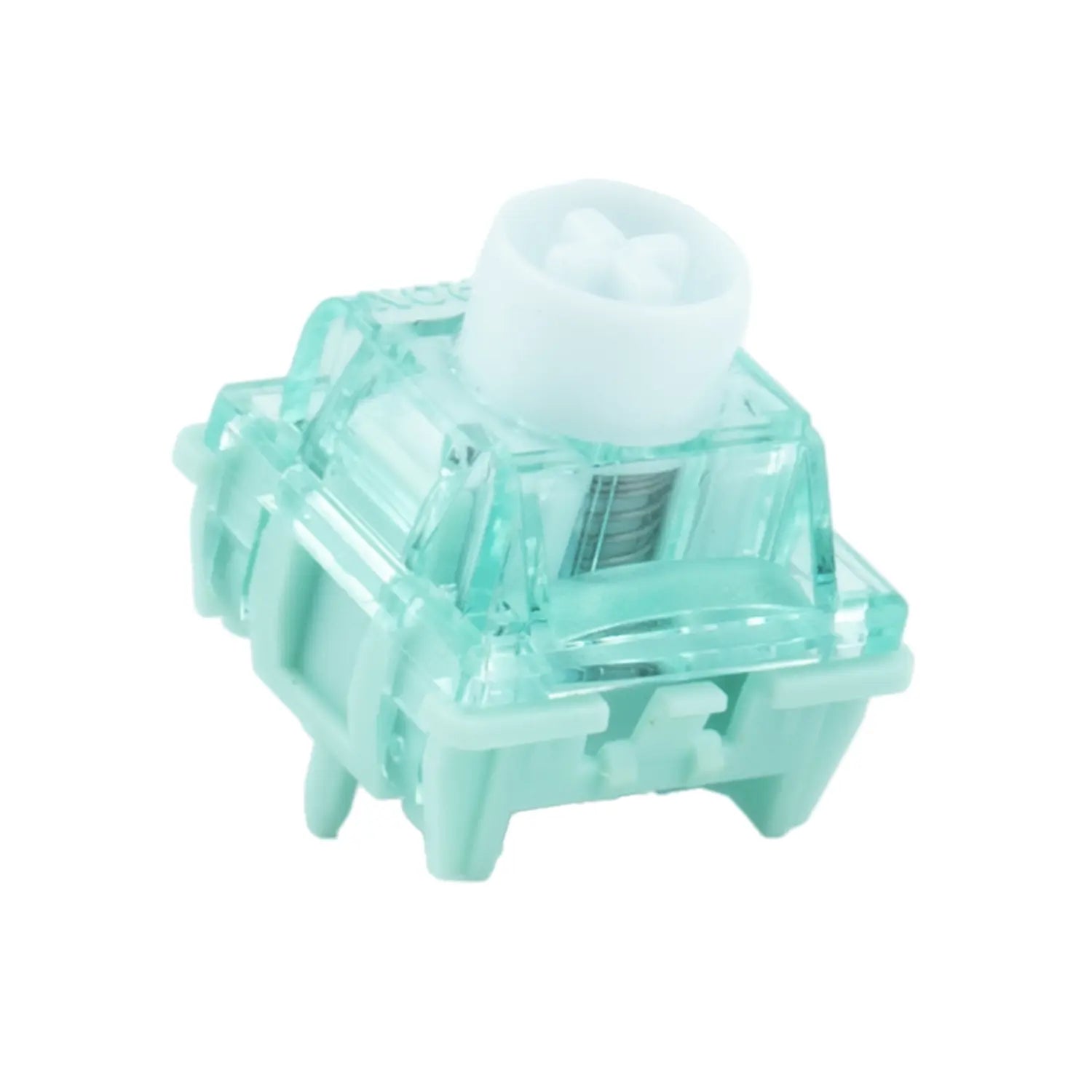

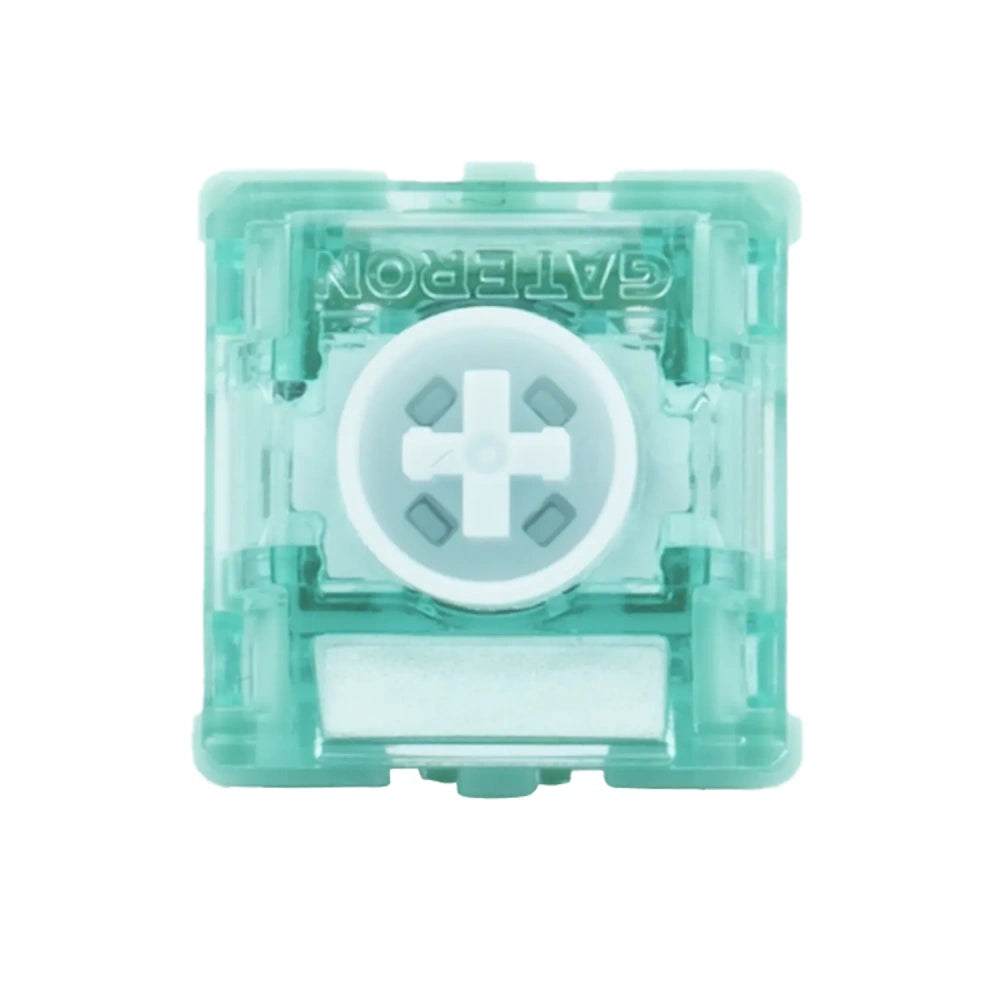

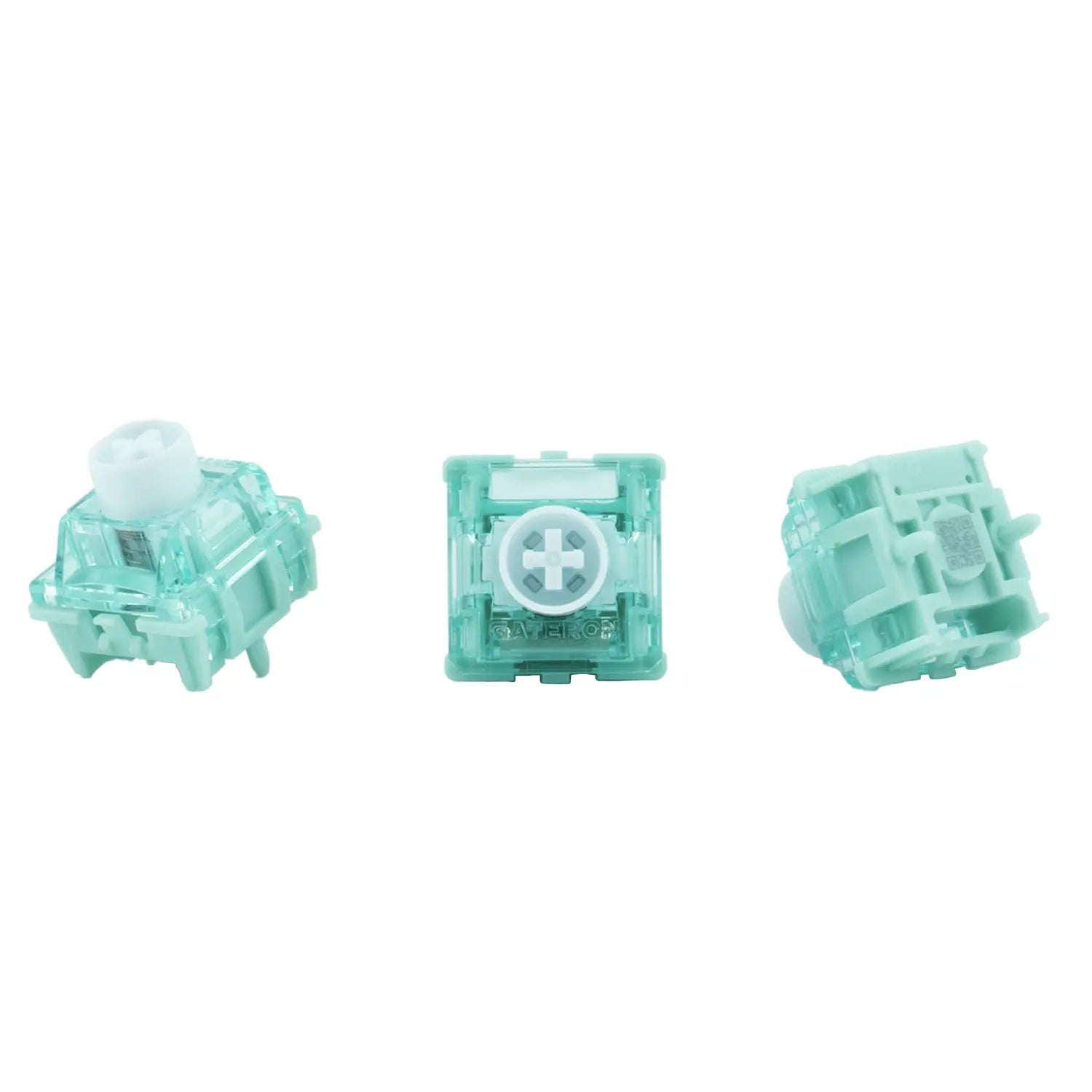

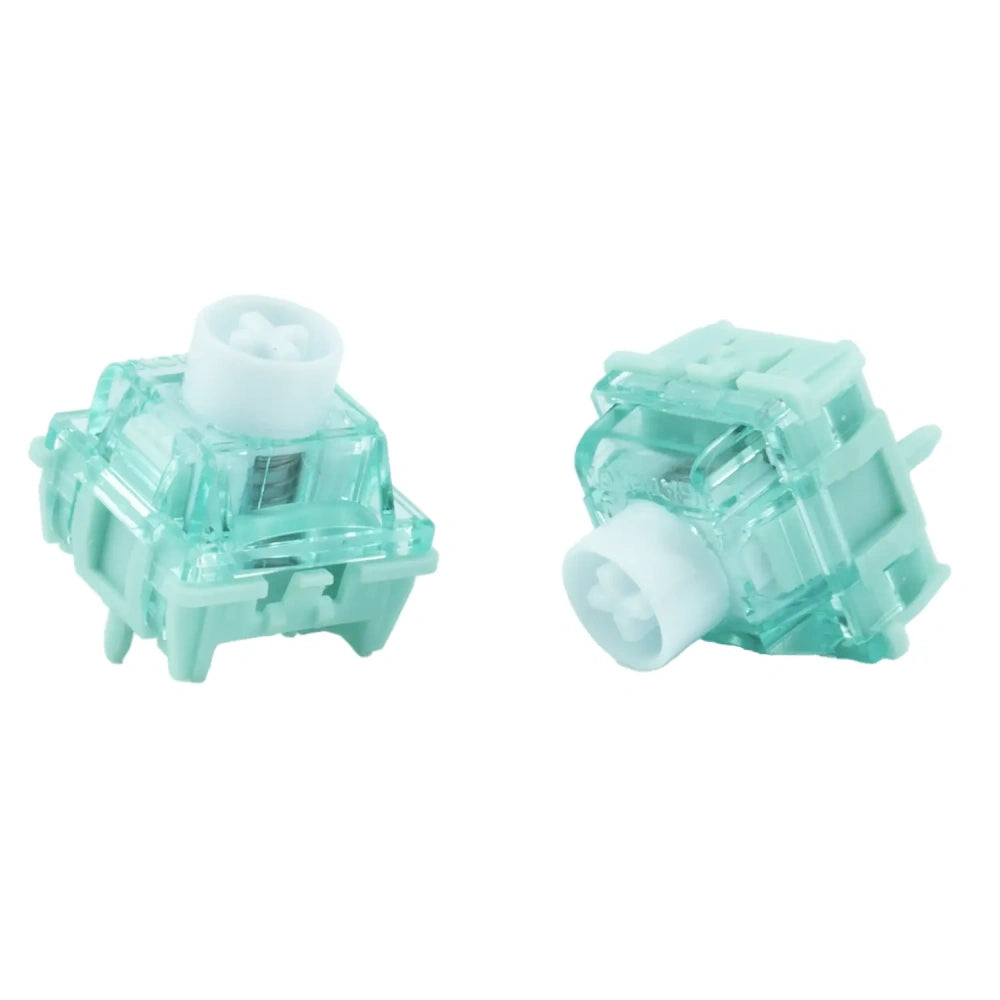

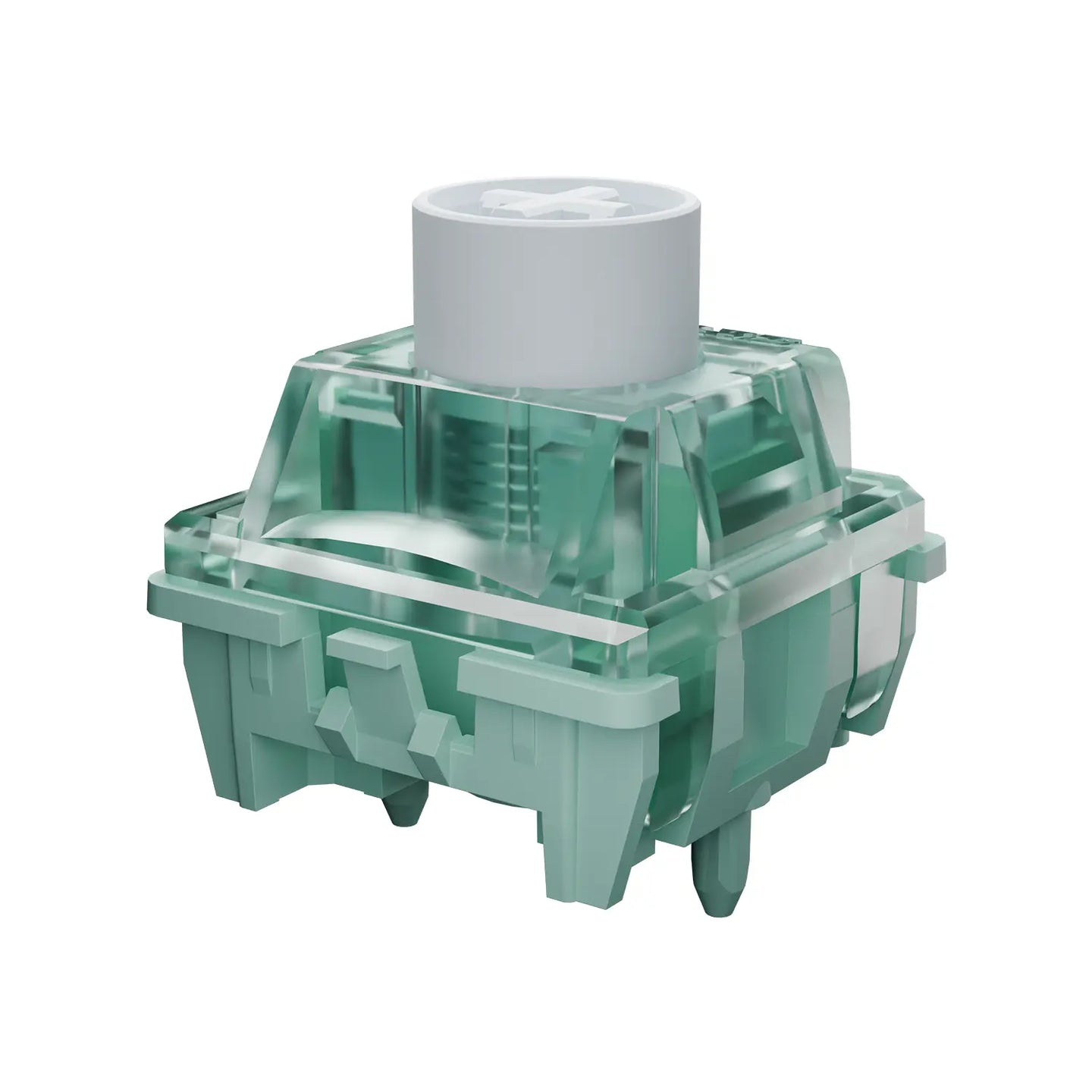

Gateron Magnetic Jade Ultra HE Magnetic Keyboard Switches - Dual-Drive Modular System

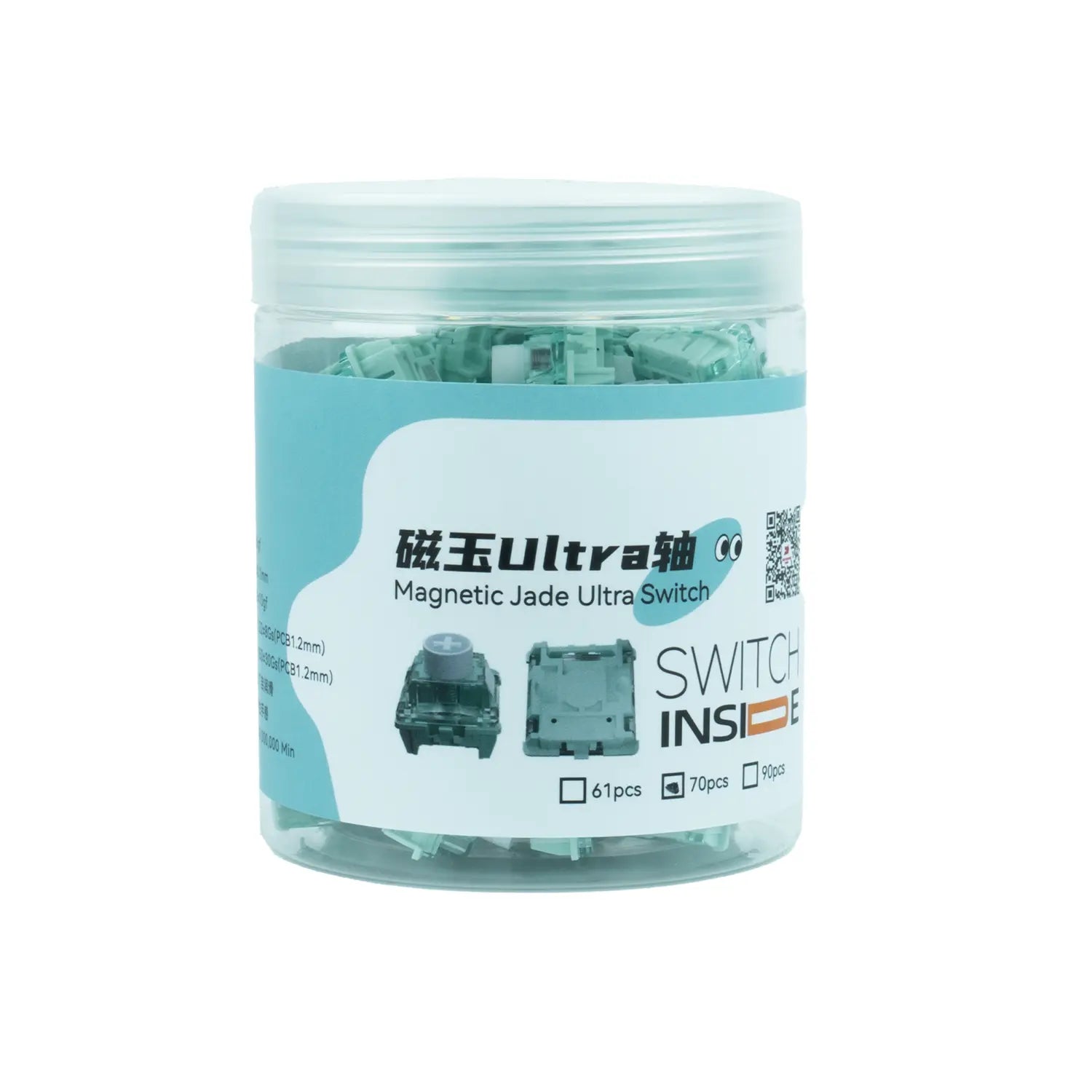

Pack sizes: 10 switches, 70 switches, 90 switches

  • Initial Force: 30±5gf
  • Bottom-out Force: 40±10gf
  • Total Travel: 3.2±0.1mm
  • Initial Magnetic Flux: 122±8GS (PCB1.2mm)
  • Bottom-out Magnetic Flux: 550±30GS (PCB1.2mm)
  • Spring:  19mm Customized Spring
  • Pre-Travel: Freely setting
  • Pre-Lubed: Yes
  • Typing Style: Linear

GATERON Magnetic Jade Ultra HE Switch Features

Magnetic Keyboard Compatibility: This magnetic switch N-pole faces down to the PCB board; any keyboard model featuring downward-facing N-pole magnetic switches is compatible with this switch.  Please check your keyboard before choosing this item.

Dual-Drive Modular Structure· Extreme Limitless Performance

GATERON's Innovative Dual-Drive Modular Magnetic Switch

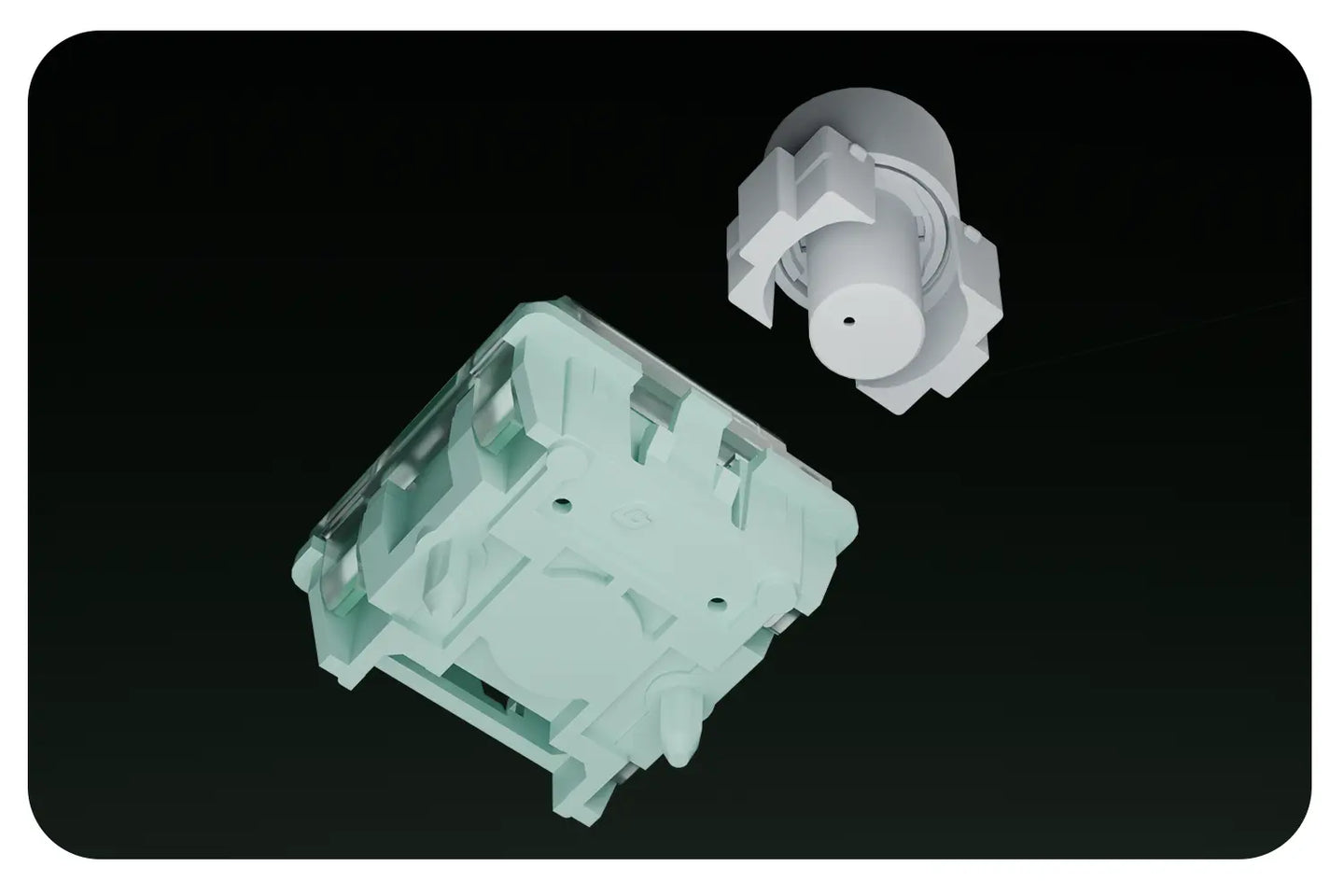

A Revolutionary Dual-Drive Architecture--Pioneering the Split-Structure Magnetic Switch.

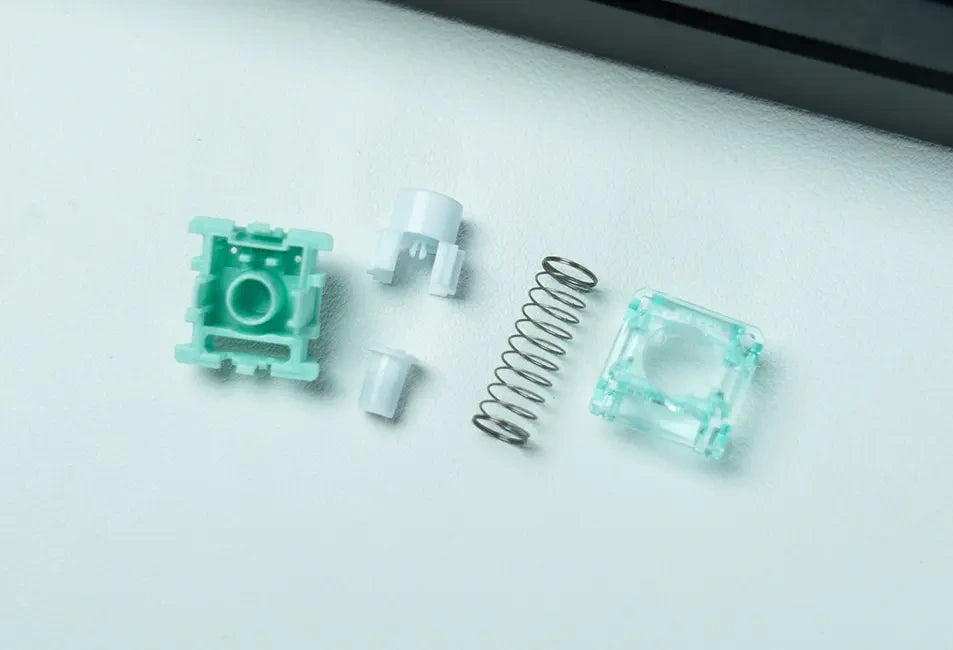

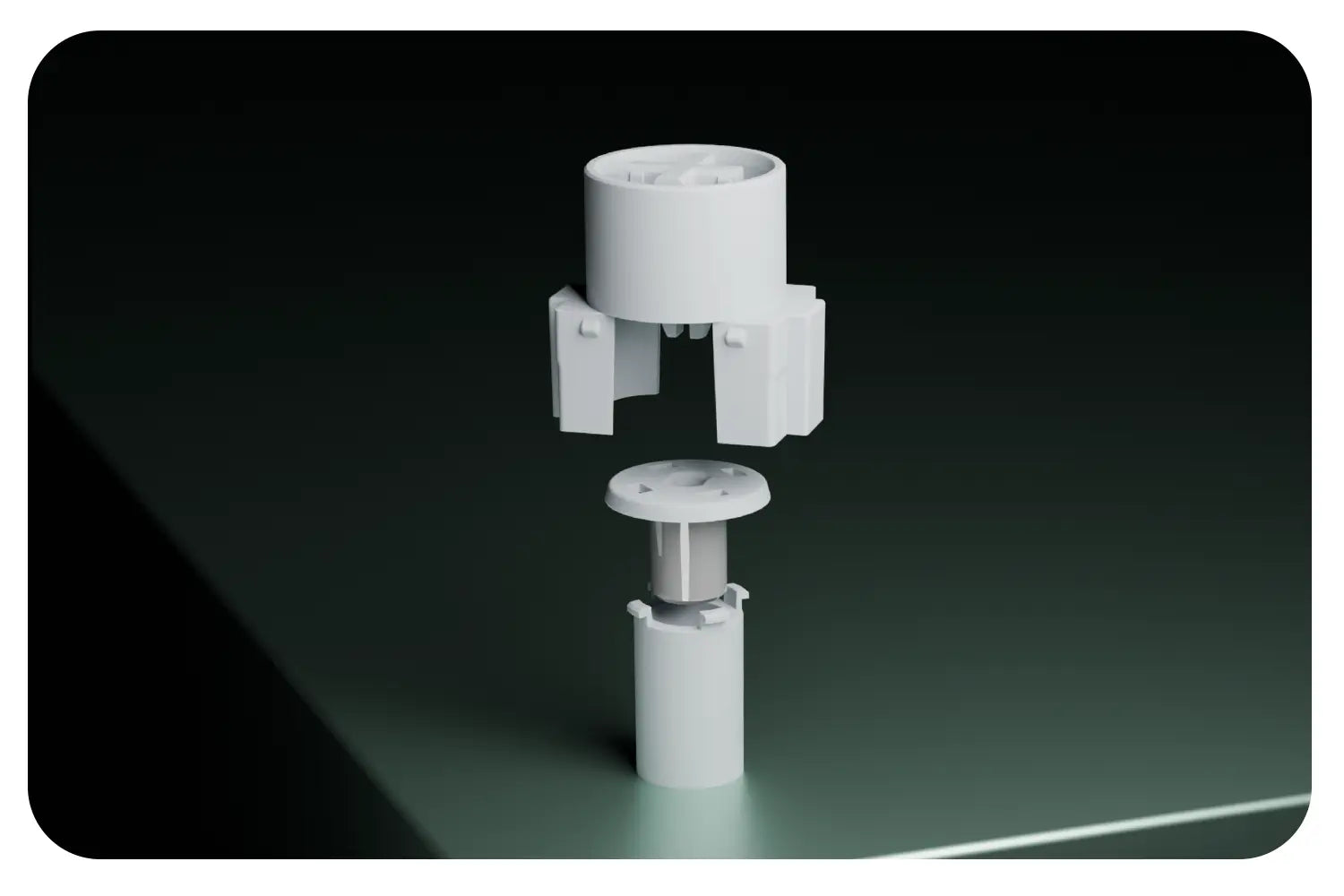

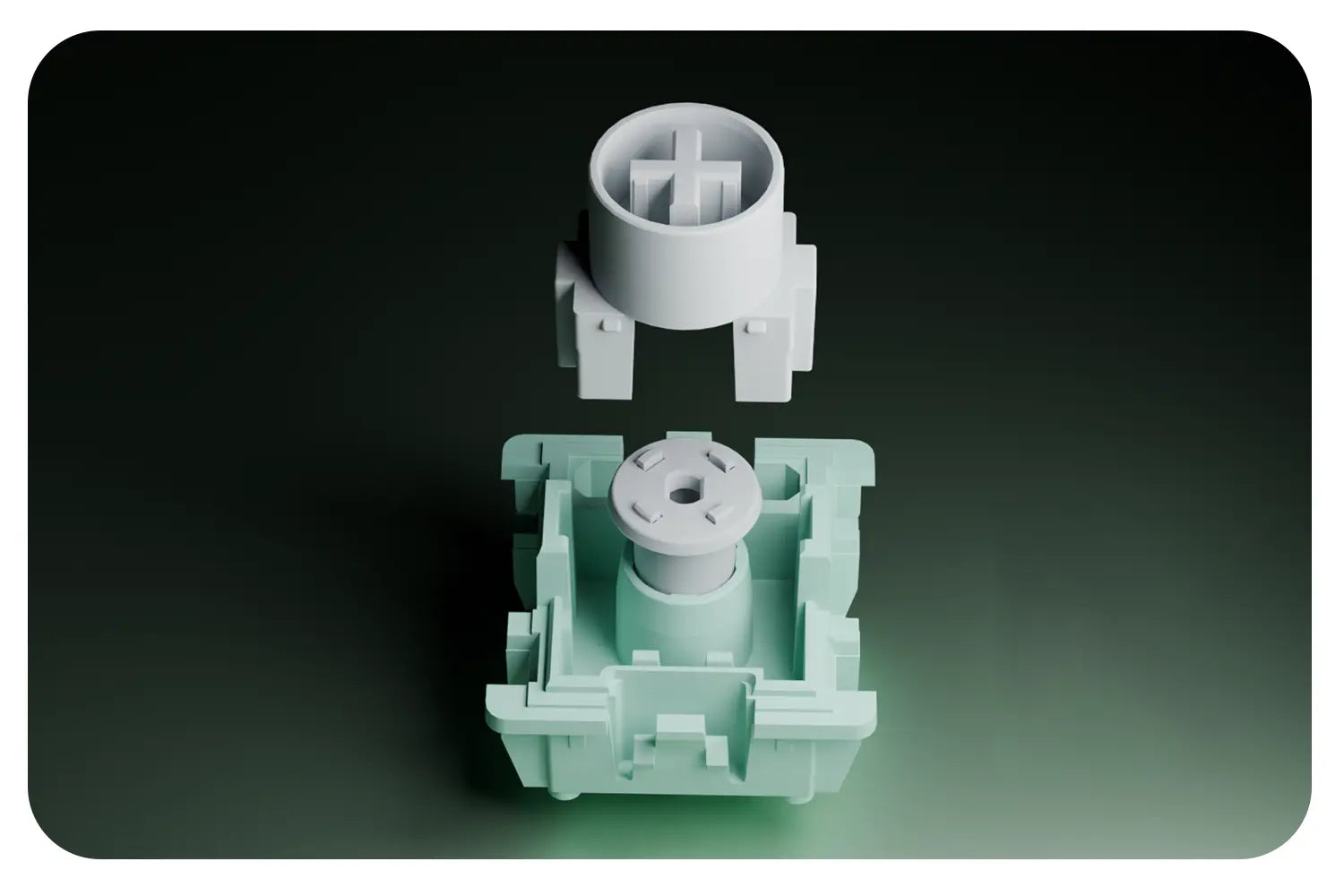

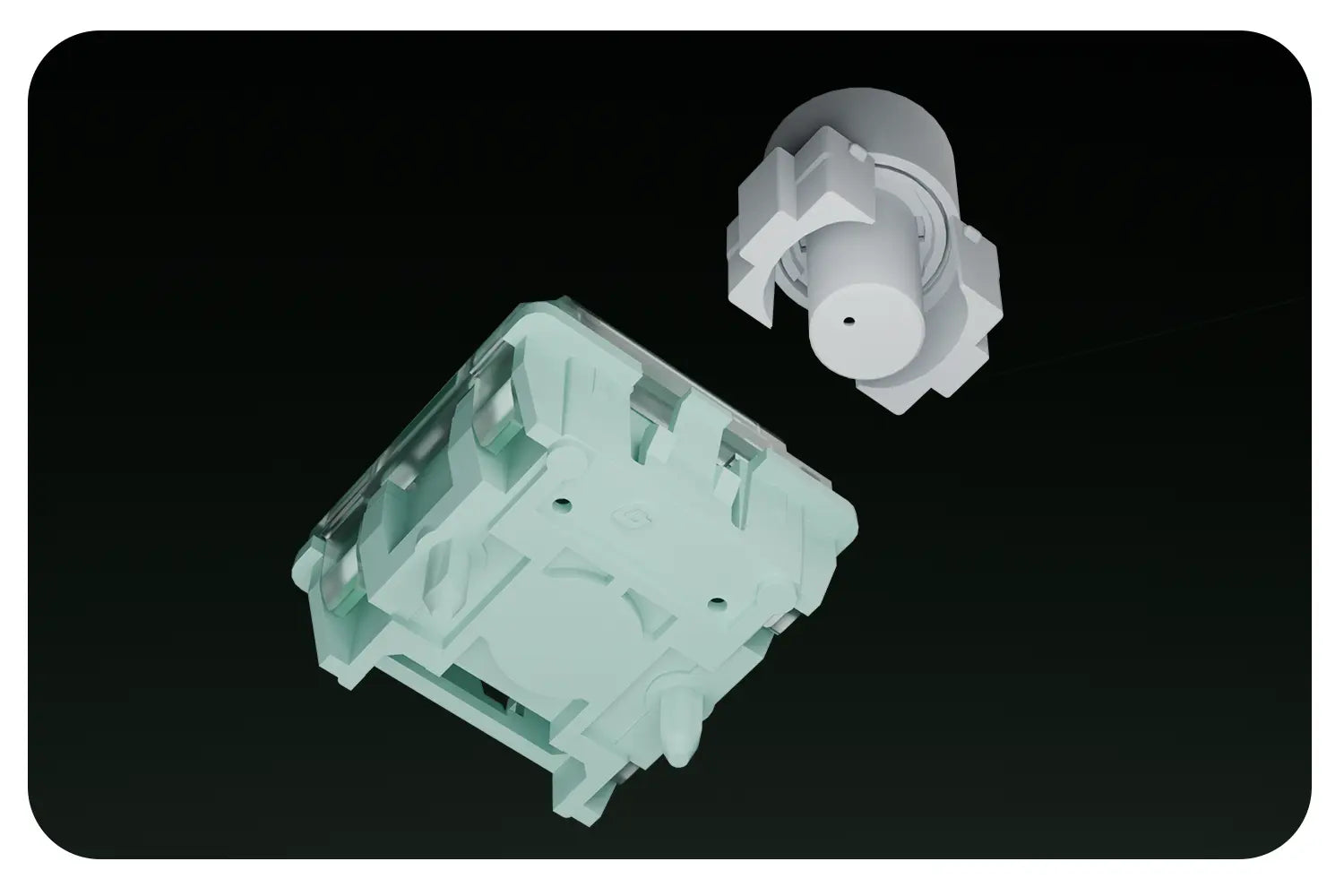

The permanent magnet and stem are decoupled into dual segments, where the upper section governs the keystroke, and the lower section activates the trigger.

Dedicated mechanics working in concert, delivering unwavering stability from the initial to the bottom-out.

Double-layer Back-covered Structure Designed to recreate the classic sound and feel of mechanical switches, bring the premium acoustics experience.

Permanent Magnet Integrated with Acoustic Chamber

Dual Back-covered Design for Enhanced Acoustics, Authentic Mechanical Switch Sound Reproduction, Superior Sound, Refined Acoustics.

Featuring factory-lubricated and a built-in lubrication channel, significantly reducing friction noise for a pure, silent typing experience.

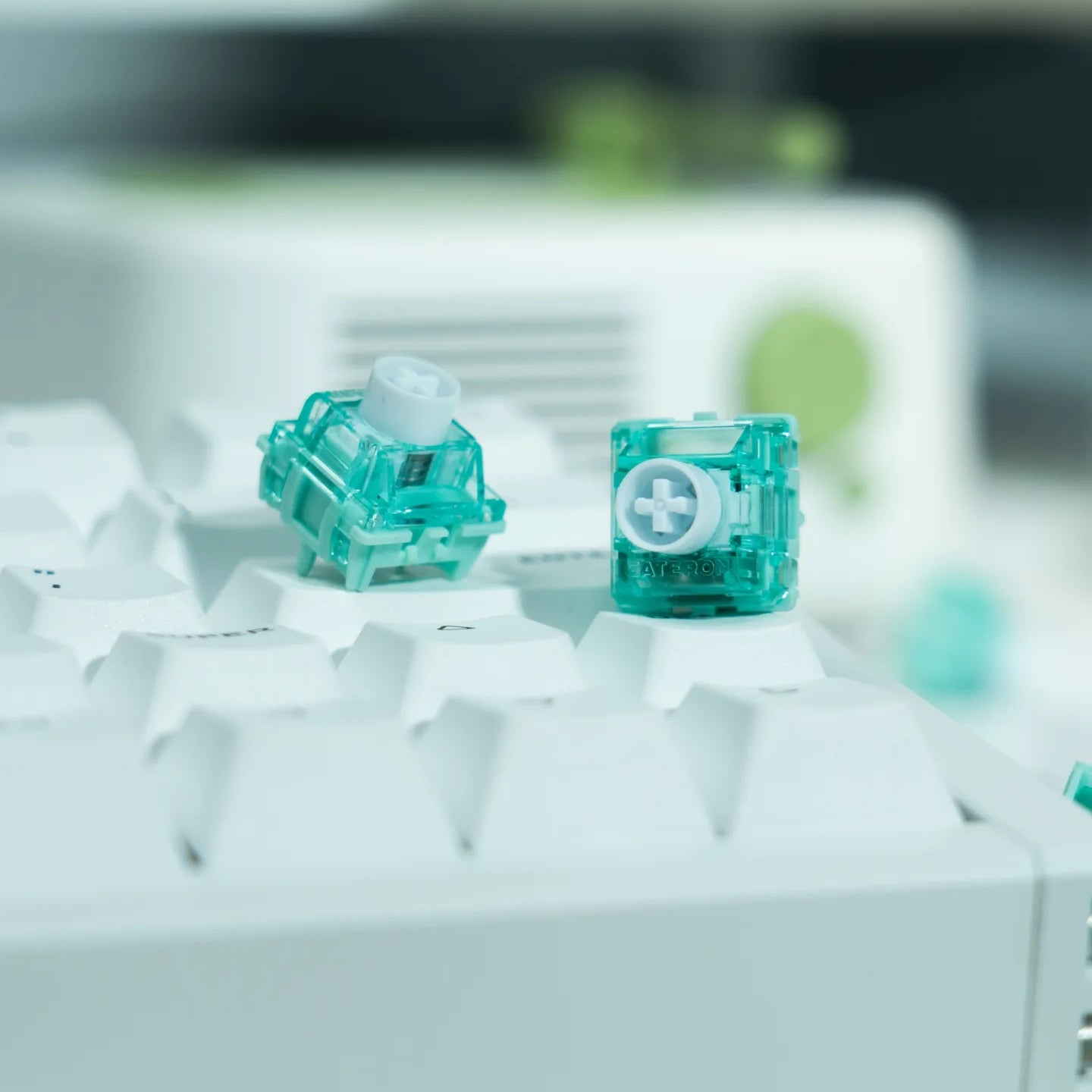

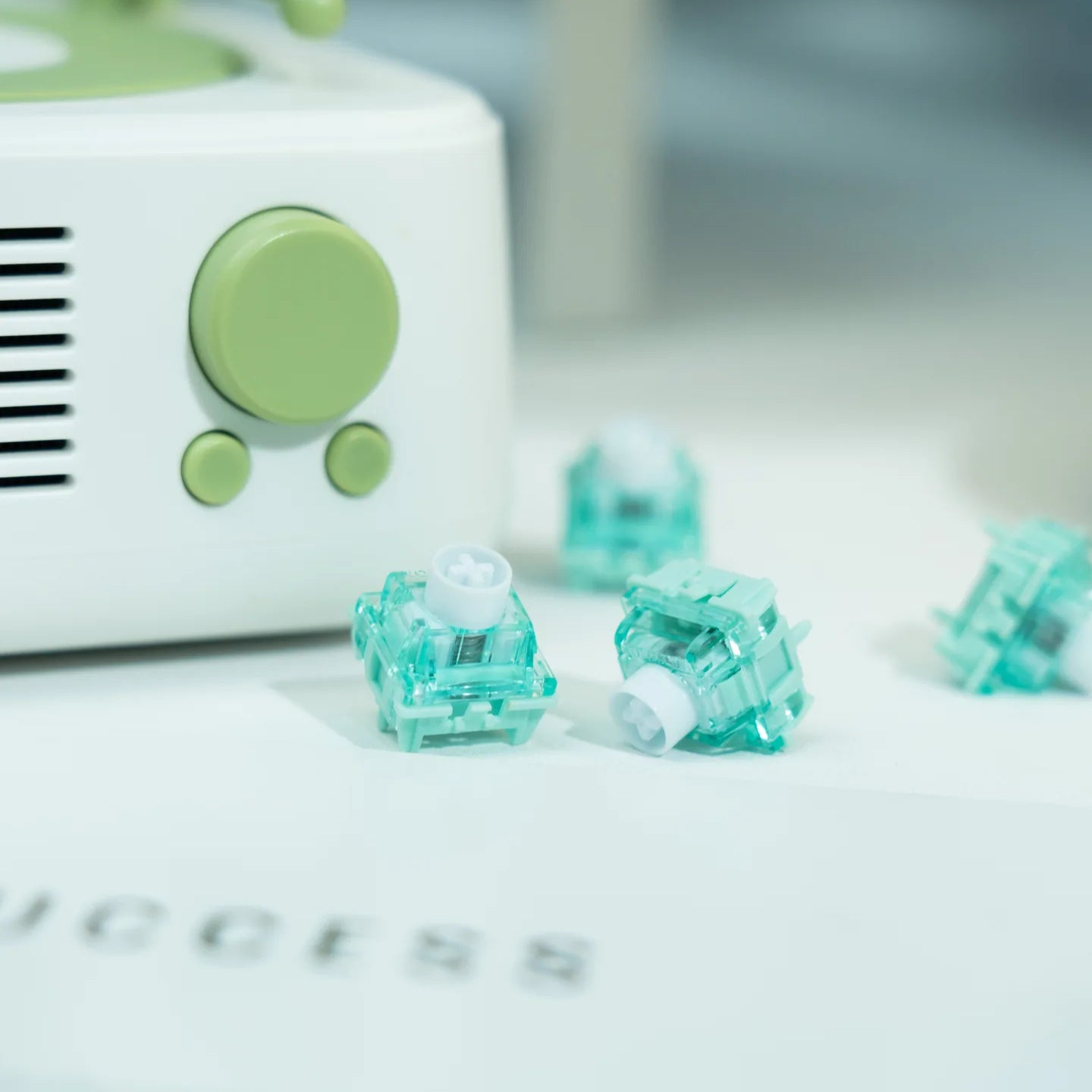

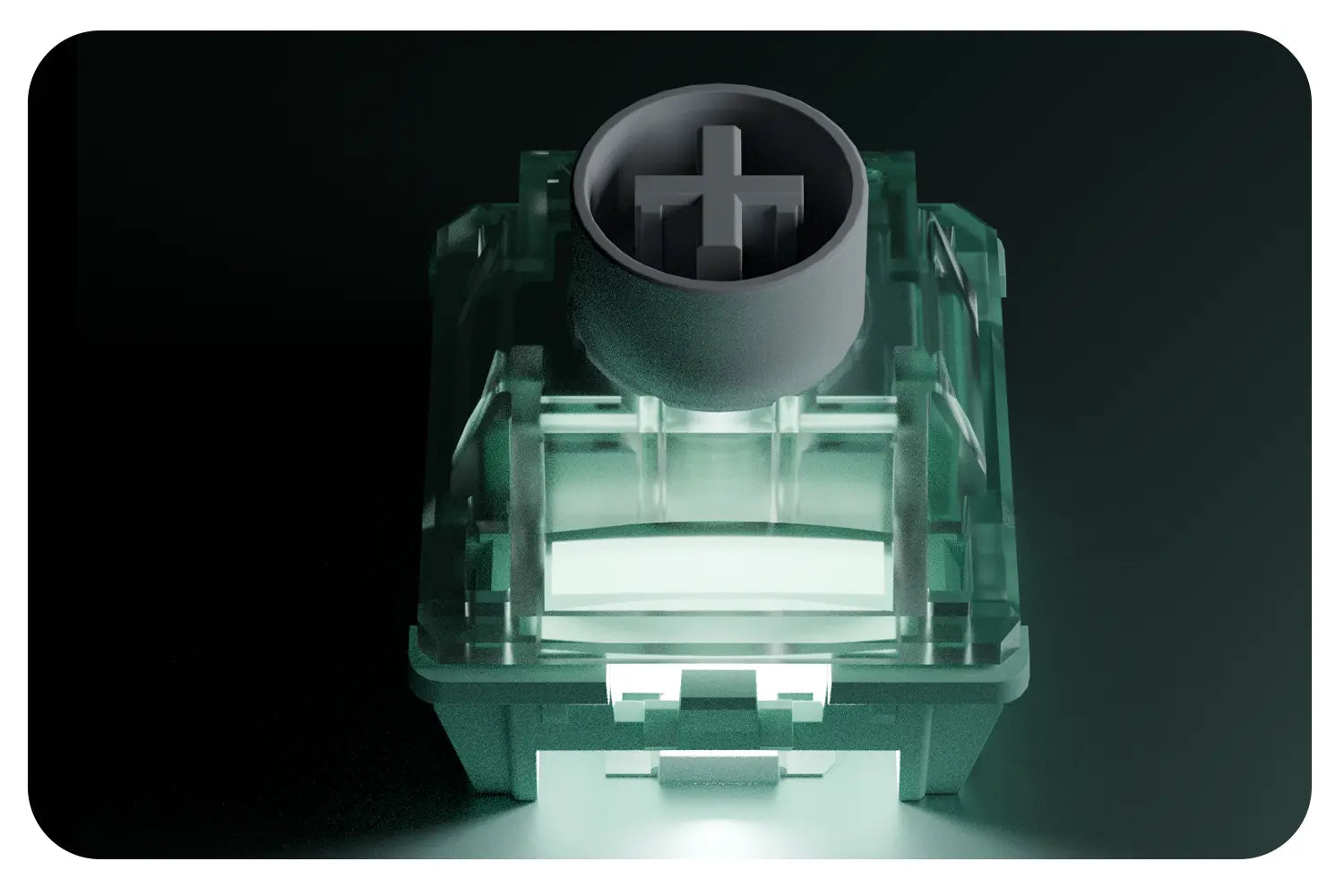

The Translucent Jade Aesthetic – Understated Elegance

Where bright light is tempered to a gentle glow, diffusing a soft, jade-toned glow through the semi-translucent top housing.

Harsh light is softened, while low light reveals a deeply textured allure.



Factory pre-lubed, reducing noise effectively

Smooth typing feel, Million times keystrokes, Durable and long-lasting

Keeping premium performance with 150 million keystrokes
