SIMGOT - SuperMix 5 In-Ear Headphone IEM

Brand: SIMGOT | Category: Headphones
$329.95

Click here to view shipping policy

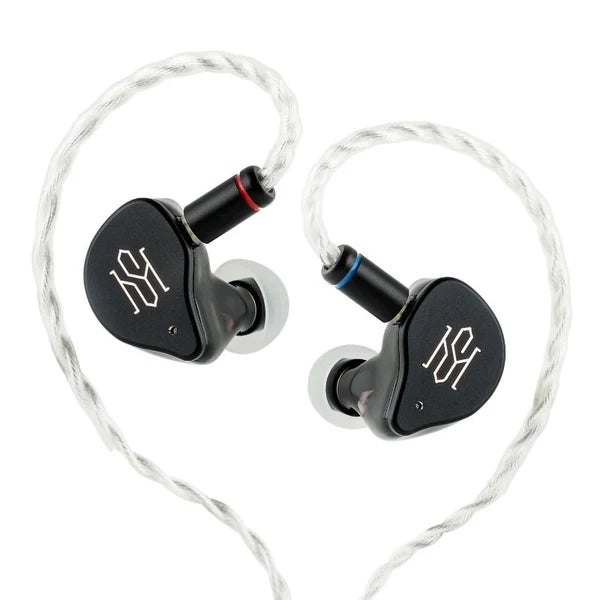

SIMGOT - SuperMix 5 In-Ear Headphone IEM

1BC+1DD+2BA+1MP in Ear Monitor

SIMGOT SuperMix 5 combines a five-driver hybrid system with custom bone conduction, precise four-way tuning, and ergonomic 3D-printed design to deliver powerful bass, high resolution, and a natural soundstage. Paired with a silver-plated Litz cable and interchangeable plugs, it excels in music and gaming.

Advanced Five-Driver Hybrid System: A powerful 1DD + 2BA + 1MP + 1BC configuration delivers natural tonal blending, deep bass, high resolution, and extended treble for a truly high-fidelity listening experience.

Custom Bone Conduction Enhancement: The 10mm custom coil bone conduction driver adds fast, textured low frequencies and refined micro-details through direct inner-ear vibration from 200Hz to 7kHz.

Scientific Tuning with Independent Acoustics: RC four-way crossover, independent 3D-printed acoustic ducts, and multi-channel damping ensure low distortion, seamless driver transitions, and an accurate, realistic soundstage.

Premium Build & High-Purity Detachable Cable: CNC metal + translucent resin housing provides durability and comfort, paired with a silver-plated OCC Litz cable and interchangeable 3.5mm/4.4mm plugs for optimal signal integrity and versatility.

Five-in-one Matrix Acoustic Architecture

SuperMix 5 employs a luxurious five-driver configuration of ‘dynamic driver x 1 + balanced armature x 2 + micro planar driver x 1 + bone conduction x 1’. This includes an 8mm DLC flexible surround dynamic driver, delivering robust and detailed bass. Paired with two large-volume balanced armature drivers for the midrange and a planar magnetic driver, it significantly enhances resolution and extension. A custom 10mm bone conduction driver, designed for mid-to-low frequency compensation, enhances bass texture and response speed. The synergistic operation of these multiple drivers achieves a natural tonal fusion.

Custom Coil Bone Conduction Technology

SuperMix 5 incorporates a custom coil bone conduction driver. This converts electrical audio signals into mechanical vibrations, which are transmitted directly to the inner ear via bony structures such as the skull. Compared to conventional “air conduction”, bone conduction bypasses the air-transmission pathway through the outer and middle ear, stimulating the inner ear directly via skeletal vibration. Its effective frequency response spans 200Hz–7kHz, significantly enhancing low-frequency texture, response speed, and subtle dynamic detail.

Scientific Tuning and Independent Acoustics

Through precision-engineered RC four-way crossover circuits, frequency ranges are rationally allocated across distinct drivers to maximise their individual characteristics. Employing resin 3D printing technology, each driver is fitted with an independent filter duct designed to prevent interference. Combined with a multi-channel damping tuning system, this enables precise control over frequency response and phase alignment across all drivers, achieving seamless transitions, low distortion, and a natural, authentic soundstage.

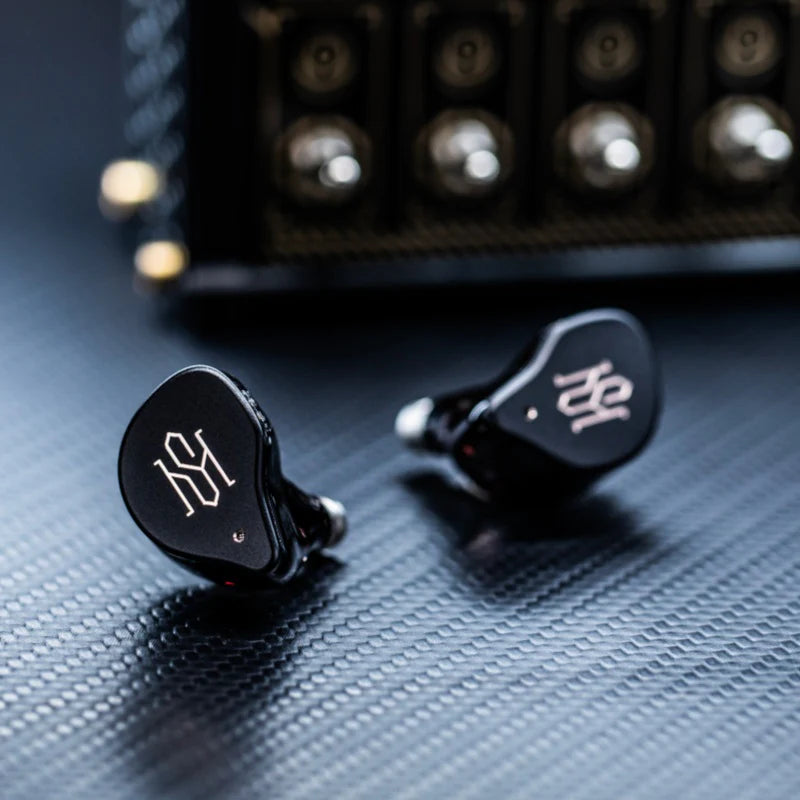

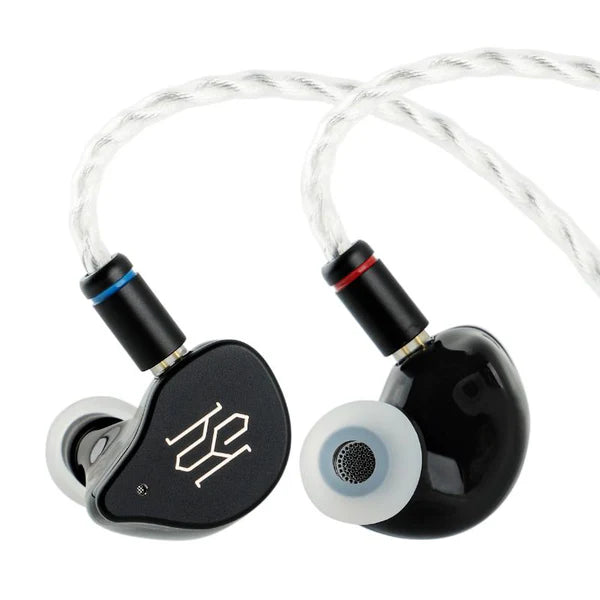

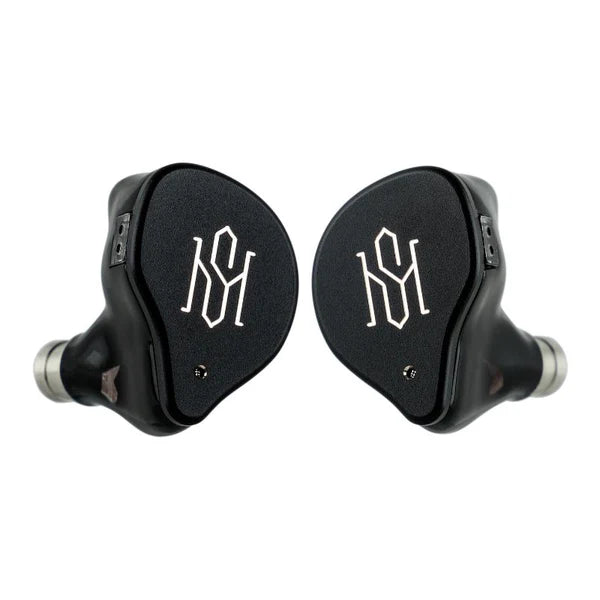

Precision Craftsmanship and Scientific Design

Employing high-precision resin 3D printing and CNC machining of metal, the design achieves a seamless fusion of a translucent black resin housing with a satin-finished metal cover. The construction fully accounts for the physical properties of resin and metal, incorporating acoustic principles to effectively suppress standing waves, resulting in a more refined and pure sound signature. SuperMix 5's housing design integrates extensive 3D data from diverse ear shapes, delivering an ergonomic solution that ensures a secure and comfortable wearing experience.

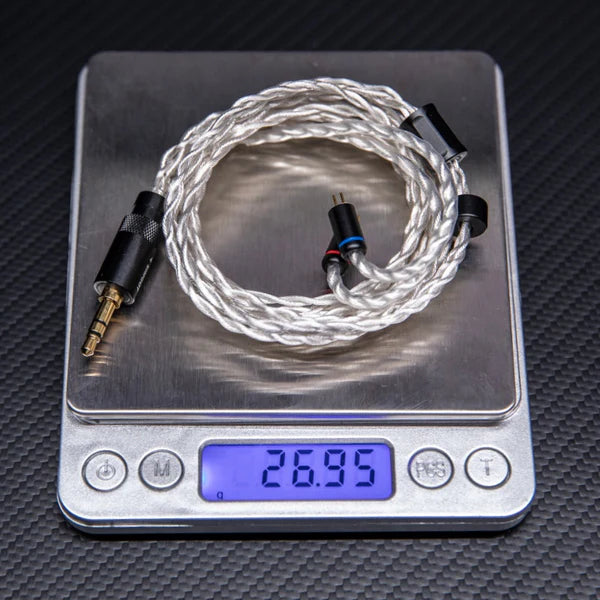

High-purity OCC Silver-plated Litz Cable

Features Litz-structured single-crystal silver-plated copper conductors to ensure high-fidelity signal transmission, enhancing sound separation and transparency. Supports 0.78mm 2-pin detachable cable with interchangeable 3.5mm/4.4mm plugs. Referencing the H-2019 frequency response curve, the SuperMix 5 excels in both audio-visual and gaming applications, delivering precise sound reproduction. Its robust bass and clear detail satisfy demands for entertainment and competitive gaming.

Technical Details

Model

Simgot SuperMix 5

Driver Configuration

1× Bone Conduction + 1× Dynamic Driver + 2× Balanced Armature + 1× Micro Planar Driver

Dynamic Driver

DLC Flexible Surround Low-Frequency Driver

Impedance

19Ω ±15% (@1kHz)

Sensitivity

120dB/Vrms (@1kHz)

Frequency Response

8Hz–40kHz

Effective Frequency Response

20Hz–20kHz

Connector

0.78mm 2-Pin

Housing

High-Precision Resin 3D Printing

Cable Material

Litz High-Purity Silver-Plated Single-Crystal Copper

Plug Type

3.5mm / 4.4mm Interchangeable Plugs

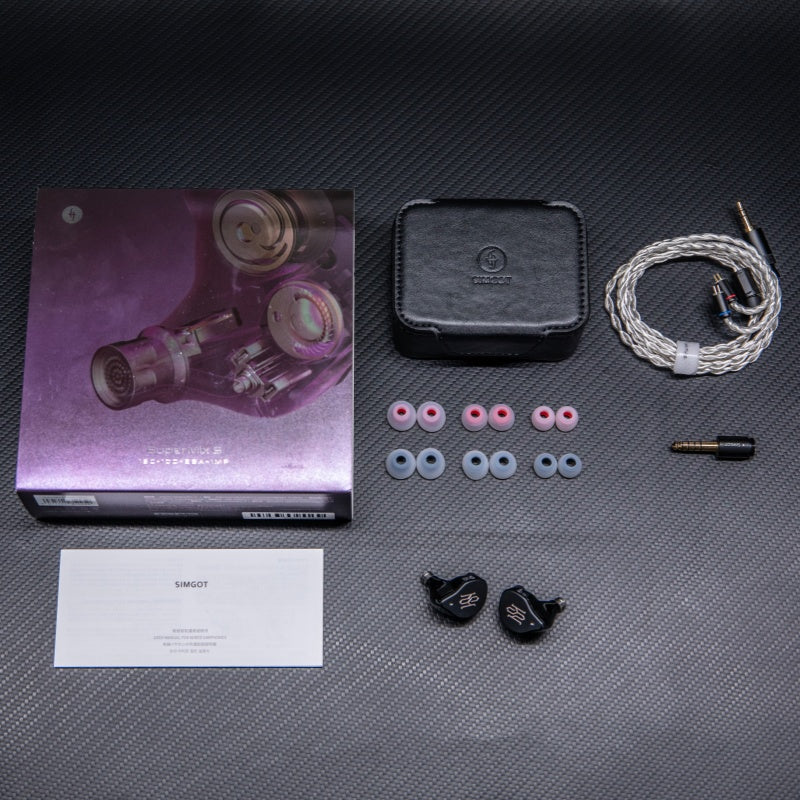

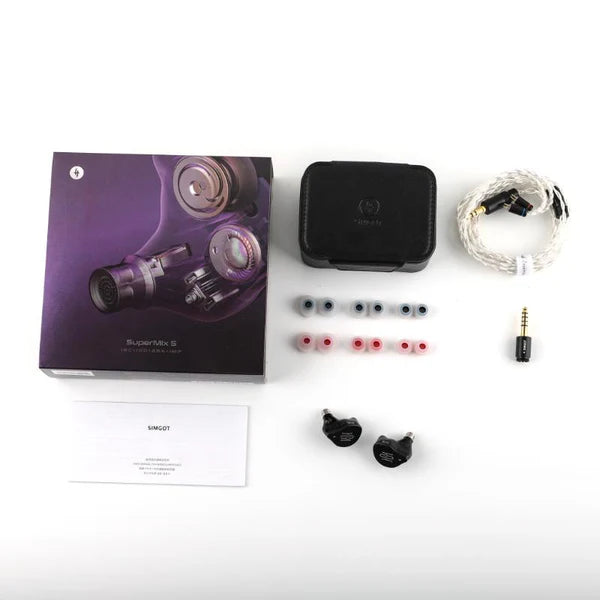

Inside the Box
  • 1x Pair of SIMGOT SuperMix 5 In-Ear Monitors
  • 1x Detachable Premium Cable
  • 1x Carrying Case
  • 6x Eartips
  • 1x 3.5mm Adapter
  • 1x 4.4mm Adapter
  • 1x Warranty Card / Thank You Note

1 year warranty
