Wooting 80HE Module (ANSI)

Wooting 80HE Module (ANSI)

Layout: ANSI

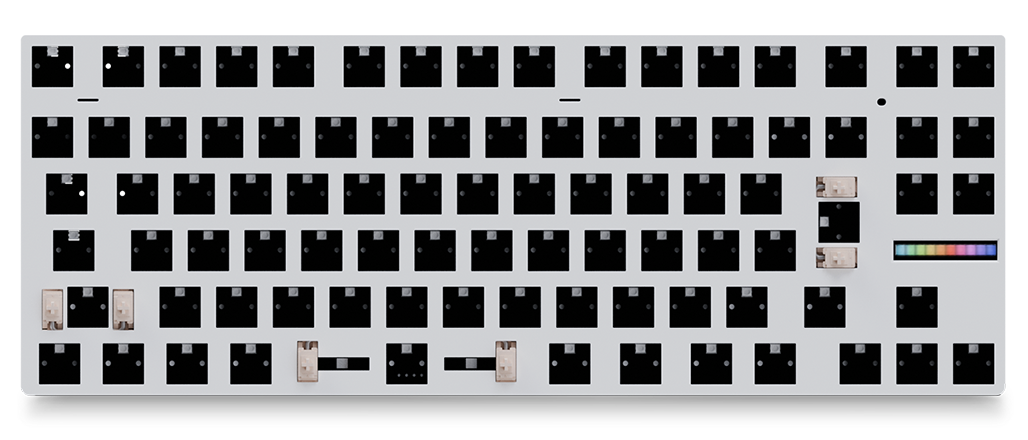

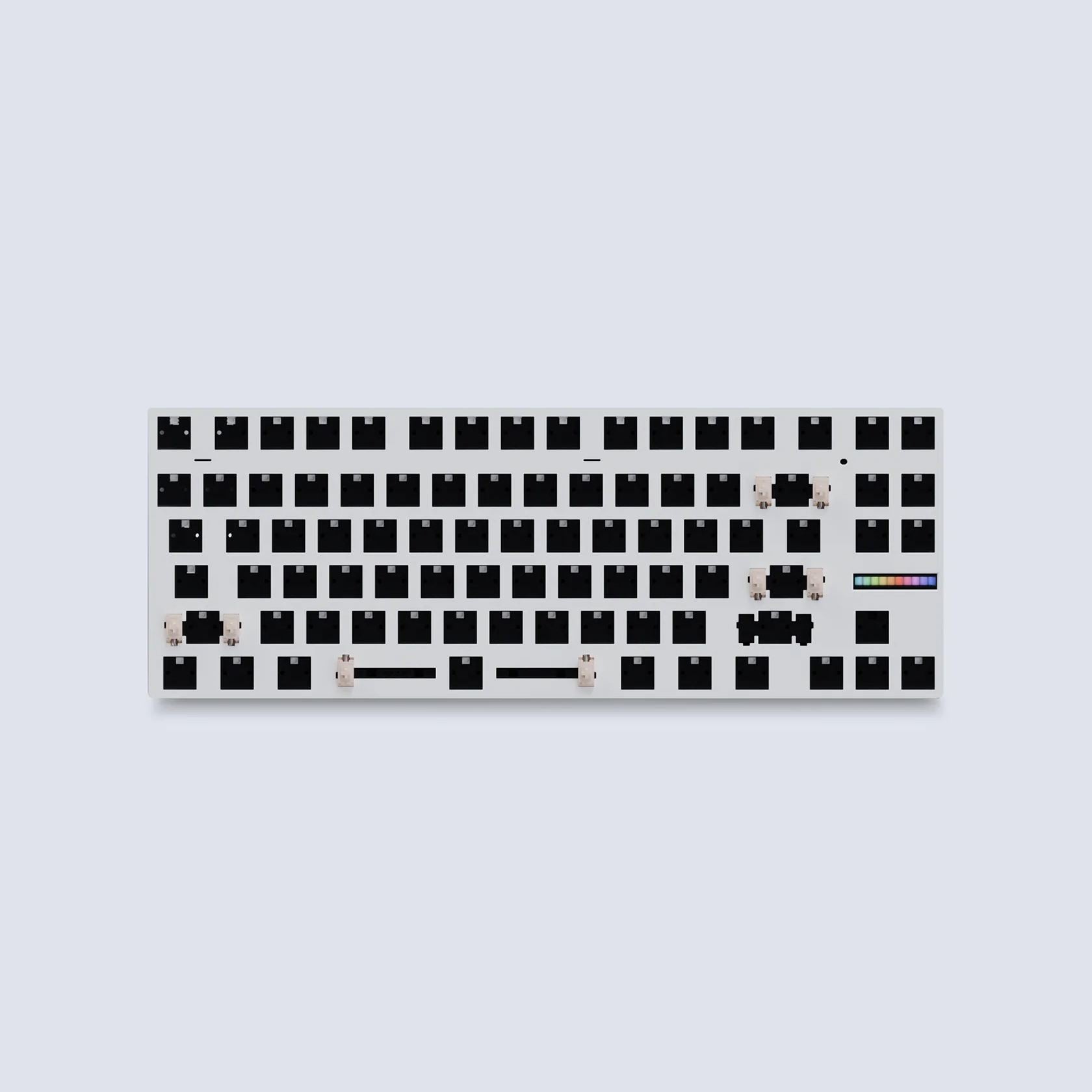

No keycaps, no switches, no case. Comes with a PC plate, Silicone/Poron pad, and an updated PCBA with screw-in stabilisers. This is the 80HE Module — order it individually or with optional switches, keycaps, and a case to build your ultimate 80HE.

Important Compatibility Notice: Please note that a USB-C daughterboard and JST cable are required for a fully functional build with the 80HE module. These components are not included with the 80HE module and are not sold as standalone items. While third-party options may be compatible, we recommend using a Wooting case, which includes the USB-C daughterboard and JST cable.

Analog Input Unleashed

Full range switch motion.

The Wooting 80HE detects full switch motion with 0.1mm accuracy from start to end. Every key outputs an analog signal for features that enhance typing and gaming alike — there’s no compromise. Welcome to the future.

True 8kHz Polling Rate

0.125ms latency.

The 80HE supports up to 8kHz USB polling while scanning every analog key position at the same rate, delivering a True 8kHz polling experience. This lowers keyboard latency to just 0.125ms — instant, consistent, and competition-ready.

Adjustable Actuation

A pretty “sensitive” subject.

Eliminate the slowest part of input latency — the key press travel before activation. You have full control over your actuation point from 0.1mm to 4.0mm. Configurable per key in 0.1mm steps, you can tune each key precisely to your playstyle.

Rapid Trigger

Unmatched performance.

Rapid Trigger dynamically changes the actuation and deactivation points, letting your keys activate the instant you press and deactivate the instant you release. You can even repeat presses mid-motion without needing to surpass a reset point — ideal for rhythm, movement, and precision control.

Rappy Snappy (pat. pending)

Next-level responsiveness.

Rappy Snappy monitors multiple selected keys and activates the one pressed the furthest. When combined with Rapid Trigger, it compares keys only while active, allowing pre-pressing and faster activation on opposite key release. Perfect for (counter)-strafing, bunny hopping, and tight block or combo timing in games.

Specifications

Technical:
Switches: None
Keycaps: None
Case: None
Stabilisers: Screw-in
Plate: White polycarbonate (PC)
Sandwich pad: Silicone or Poron foam
PCBA: Wooting 80HE
Cable: 1.8m USB-A to C
Dimensions: 36.5 × 12.5 × 0.6 cm
Weight: 320g

Compatibility:
Switches: Lekker, Gateron KS-20
Stabilisers: Screw-in or plate-mounted
Case: Tray mount

In the box:
1× Wooting 80HE Module
1× Poron sandwich pad
1× EPDM dampening foam
1× USB cable A to C
10× Silicone stand-off stickers
7× PH1 M2 white screws
